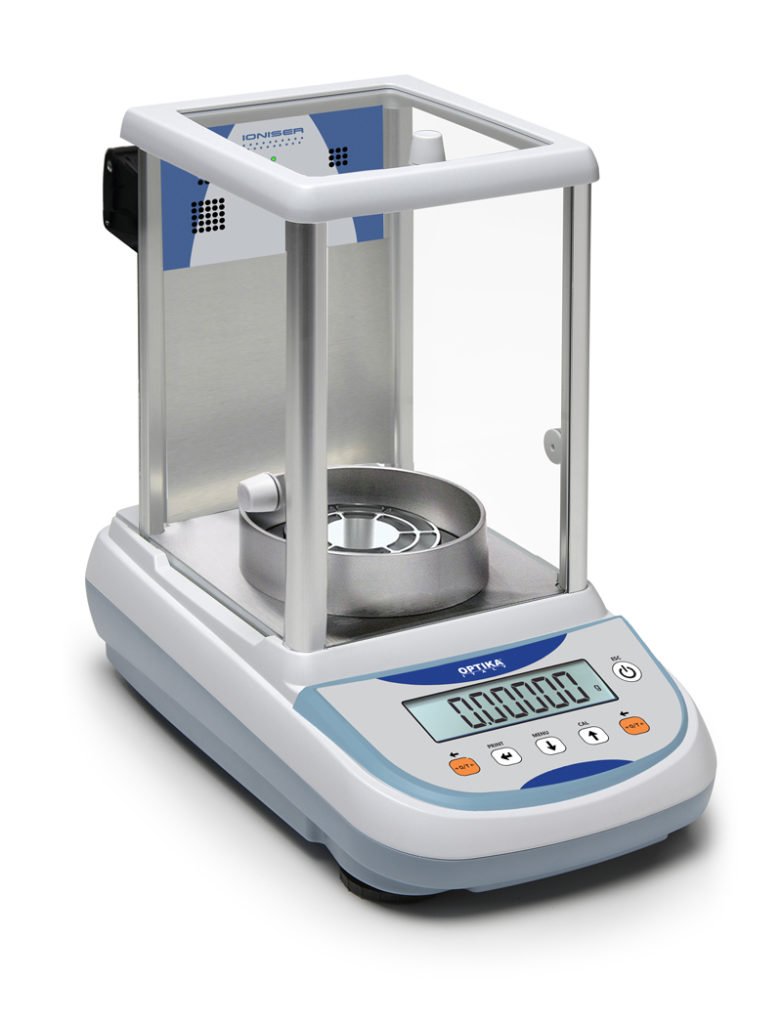

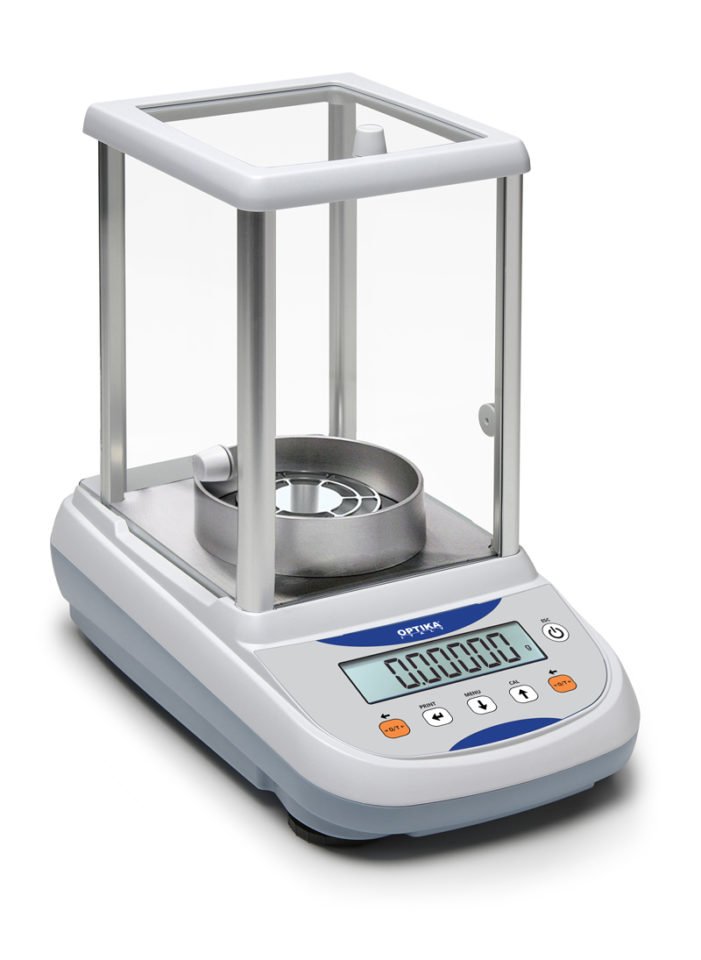

SemiMicro Resolution 0,01mg

Images are for illustrative purposes only

» Electromagnetic force restoration weighing system
» Highly integrated weighing cell
» Automatic internal calibration
»Efficient filtering to deliver quick and accurate results
» LCD with backlight with adjustable contrast
» Large glass draught shield with 3 sliding doors for easy access to the items being weighed
» Plastic protection cover for keypad

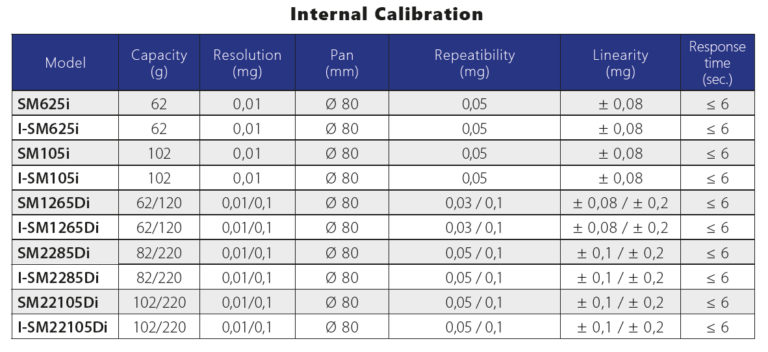

Balance technical data

• Span drift (+ 10…+ 30 °C): +/– 2ppm/°C

• Dimensions LxWxH (mm): 345x215x345

• Weighing chamber diameter-Height (mm) 0,001g res. models: 150×70

• Power supply M models 110-230Vac, 50/60Hz; output 24V 500mA 13VA

• Power supply L models 110-230Vac, 50/60Hz; output 9V 1,2A 10VA

• Net Weight: 6,7 Kg

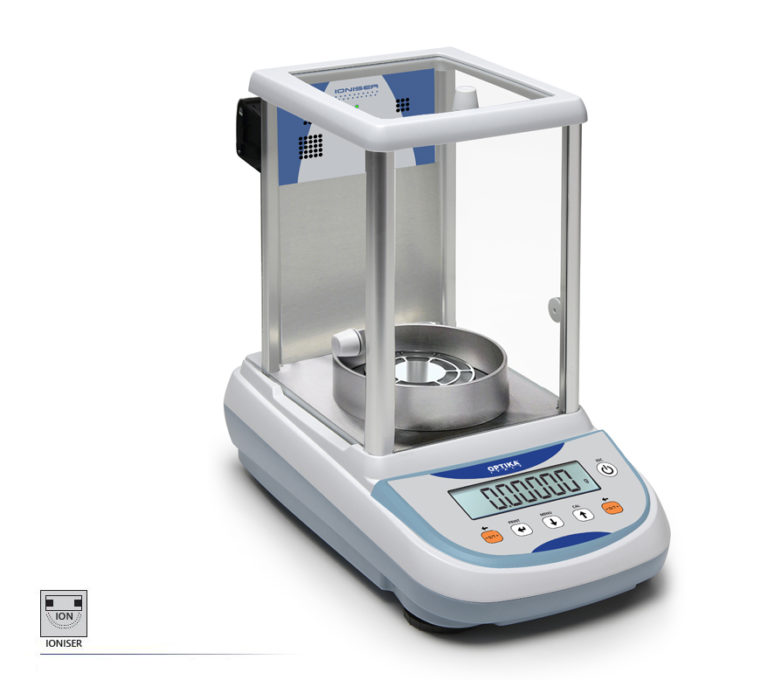

Ioniser technical data

• Operation modes: 2 minutes or continuosily for max 8 hours

• Ozone concentration: 0-0.05 ppm (2cm from ion source)

• Distance sample-ion source: about 5-40 cm

• Discharge time: 9s/5cm, 13s/10cm

• Ambient conditions: 0-50°C, 20-80% air humidity (non-condensing)

• Ioniser Power supply: IN AC 100-240V 50/60Hz, OUT DC 12V, 500mA

• Portable ioniser Ion-A15 (CNS0371)

• Serial Printer TLP-50, with date/time (CNS054)

• Serial Printer DPP-250 (CNS007)

• Serial Printer STAT , with Stastistics functions (CNS022)
• Density KIT for solids and liquids (CNS002)

• Alphanumeric external keyboard (CNS005)
• Serial to USB converter (CNS1002)

• Serial cable for serial output to printer or PC (CNS743)

• Factory Calibration certificate (CNS0333)
