Moisture Analyzers TG, Resolution 0,0001g – 0,001g – 0,01g

Name: Moisture Analyzers TG, Resolution 0,0001g – 0,001g – 0,01g
Brand: OPTIKA
SKU: TG SERIES – 0,0001g – 0,001g – 0,01g
Availability: InStock

คุณสมบัติสินค้า:

SKU : TG SERIES – 0,0001g – 0,001g – 0,01g

TG SERIES – 0,0001g – 0,001g – 0,01g

เพิ่มรายการโปรด

เปรียบเทียบ

หมวดหมู่ : 12. Lab Equipment , Balance , OPTIKA ,

แบรนด์ : OPTIKA

TG SERIES – 0,0001g – 0,001g – 0,01g

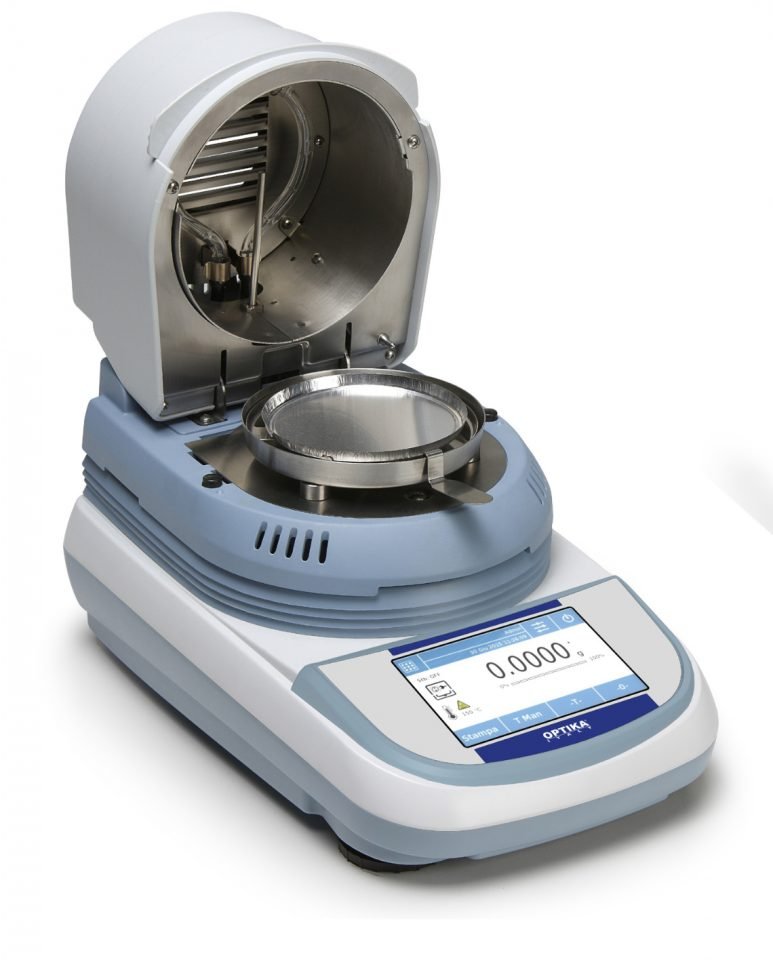

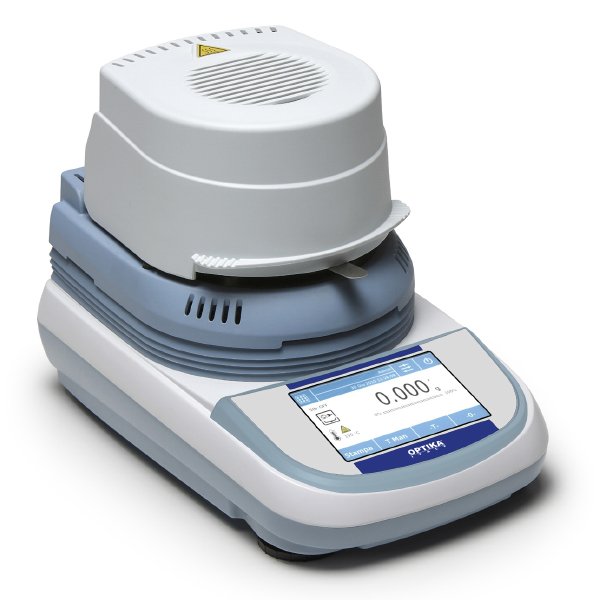

TG – Series balances are moisture balances with large 5’’ color touchscreeen display that gives a user-friendly access to all the balance advanced applications and internal databases. The user has easy and intuitive access with fast programming of drying cycles, thanks to icon-driven menus. This means more efficiency, productivity and interactivity. A double case structure protects
the heart of the balance: an aluminum inner case and a composite plastic external case.
The many on-board functions already included, the possibility of calibrating the internal thermometer using the optional KIT, up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient. The models in the family allow reaching up to 0,001% drying resolution.

Related Documents:

OPTIKA - Balances Catalogue - 13526 KB
OPTIKA - CE MOISTURE-ANALYZERS - 32.96 KB
OPTIKA - Serie - TG - Instruction Manual - EN - 3.36 MB
OPTIKA - Serie - TG - Instruction Manual - IT - 3.66 MB
OPTIKA - Serie - TG - Instruction Manual - ES - 3.12 MB
OPTIKA - Serie - TG - Instruction Manual - FR - 3.21 MB
OPTIKA - Serie - TG - Instruction Manual - DE - 3.07 MB
OPTIKA - Serie - TG - Instruction Manual - PT - 3.03 MB
OPTIKA - Serie TG - Quick Guide - EN IT PT - 1.19 MB

Images are for illustrative purposes only	» Electromagnetic force restoration weighing system (A64M and 163M) » High resolution load cell weighing system (163L and 62L) » Halogen-infrared lamp »External calibration » Large 5’’ color touchscreen 800×480 display » RS232 serial interface » Drying resolution 0,001% (-A64M), 0,01% (-163M and -163L), 0,1% (-62L) » Drying modes:Time mode (1-99 min.), Autostop % or absolute autostop in grams, Manual » Live Graph of humidty content changing » Temperature range: 35-160°C, step of 1°C » Temperature Profiles: Standard, fast, mild, steps » Results in: Humidity%, Dry residue%, ATRO%, Weight » Test results complete of full drying cycle Graph » Up to 10 hot keys for fast recall of drying cycles from internal database » Default database stored already with more than 30 products » Saving results with test reports and drying graphic up to 300 records, for each user. » Customizable settings for up to 10 users with the possibility of password protection. » Serial output for connection to printer, USB port for export or import database, test results, etc.
Balance technical data Span drift (+ 10…+ 30 °C): +/- 3ppm/°C [TGA64M]; +/- 4ppm/°C [other models] Dimensions LxWxH (mm): 345x215x235 Maximum dimension of container on the pan: 100mm (Ø) x 25mm (height) Power supply: AC 220-240 V (at request AC 110 Volt) 50/60Hz; plugs EU,UK Power consumption: rating 430 VA; Heat source lamp: 400Watt Net Weight: 6,1Kg (A64M and 163M) Net Weight: 4,7Kg (163L and 62L)

Accessorie Thermometer calibration KIT (CNS02) Serial Printer TLP-50, with date/time (CNS054) TEST pans (Ø 100mm x 0,5mm) (CNS753) Ioniser Ion-A15 (CNS0371) Factory Calibration certificate (CNS0333) Usb pendrive 8Gbyte (CNS020) Touchscreen Stylus pen (CNS021) Fiber glass test disc Ø 90 (CNS026)
