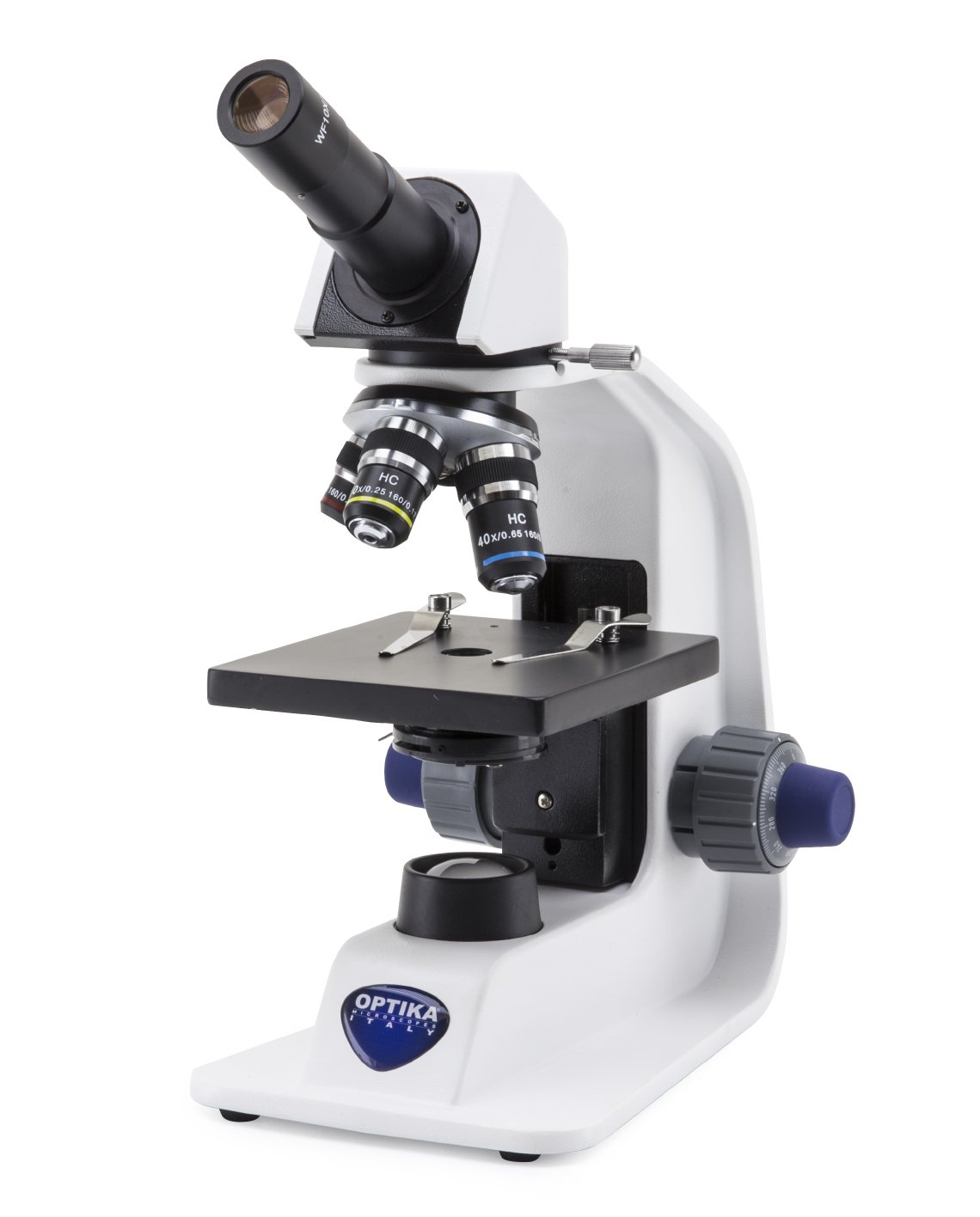

SKU : B-151
B-150 Series
หมวดหมู่ : 12. Lab Equipment , Microscope , EDUCATIONAL Microscopes , Biological Microscopes , OPTIKA , Microscopes ,
แบรนด์ : OPTIKA
Share
Observation mode: Brightfield.
Head: Monocular, 30° inclined; 360° rotating.
Eyepiece: WF10x/18 mm, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece.
Objectives:
High Contrast Achromatic 4x/0.10, with anti-fungus treatment
High Contrast Achromatic 10x/0.25, with anti-fungus treatment
High Contrast Achromatic 40x/0.65, with anti-fungus treatment
Specimen stage: Fixed stage, 130×120 mm. With sample clips.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop toprevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: N.A. 0.65, pre-centered, fixed with iris diaphragm.
Illumination: X-LED1 with white 1 W LED and light intensity control.
Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
Related Documents:
OPTIKA - B-151 - Technical Datasheet - EN - 208.06 KB
