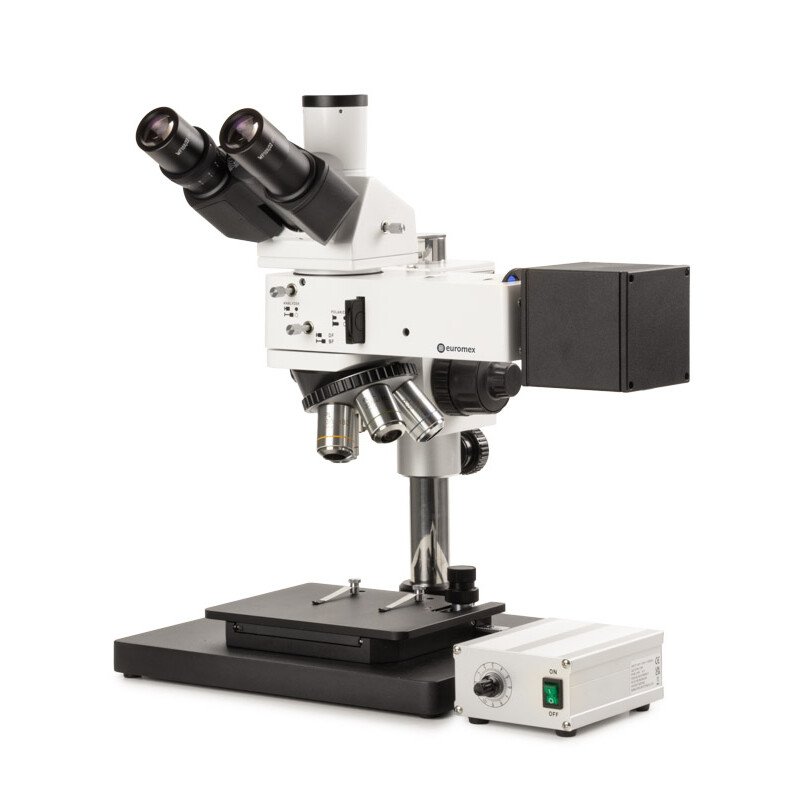

BS.4053-PLMRi-BD bScope trinocular microscope for Materials Sciences for Large Samples

bScope Materials Sciences for large samples
bScope trinocular microscope for Materials Sciences for Large Samples, HWF 10x/22 mm eyepieces and quadruple nosepiece with plan PLMi (Bright & dark field) 5/10/20/S50 infinity corrected IOS objectives. Stand 300 x 250 mm with pole and 185 x 140 mm stage with mechanical 35 x 30 mm X-Y stage. 5 W reflected NeoLED Köhler illumination and external supply

Model : BS.4053-PLMRi-BD

• HWF 10x/22 mm eyepieces

• Trinocular head 100:0 / 0:100, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-76 mm. Diopter +/- 5 adjustment on left eyepiece tube

• Reversed quadruple revolving nosepiece on ball-bearings

• Plan PLMRi 5x/0.12, 10x/0.25, 20x/0.40, S50x/0.70 infinity corrected IOS objectives for bright field and dark field contrast. No cover glass correction

• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

• Coaxial coarse and fine adjustments with 180 graduations. Precision 1.3 μm, 0.13 mm per rotation. Total travel approximately 20 mm. Friction adjustment Stand 300 x 250 mm with pole and 185 x 140 mm stage with mechanical 35 x 30 mm X-Y stage Reflected intensity adjustable 5 W NeoLED Köhler illumination with external 100-240 V (CE) power supply, push-pull type rotatable polarizer and push-pull analyzer. Integrated rotating filter disc with green, blue, yellow and white filters

• Supplied with power cord, dust cover, tools, spare fuse. Packed in styrofoam case

ACCESSORIES

Eyepieces for bScope Large Samples
BS.6310 WF 10x/22 mm eyepiece for bScope Materials Sciences and fluorescence models with Ø 30 mm tube	BS.6310-M WF 10x/22 mm eyepiece with 10/100 micrometer for bScope Materials Sciences and fluorescence models with Ø 30mm tube	BS.6315 WF 15x/12 mm eyepiece for bScope Materials Sciences, and fluorescence models with Ø 30 mm tubes	BS.6399 Pair of eyecups for bScope Materials Sciences, Ø 30 mm tube
E-Plan objectivesObjectives IOS Plan PLMi 45 mm for BF & DF contrast for bScope Large Samples
BS.8805 Plan PLMi 5x/0.12 infinity corrected IOS objective for bright and dark field for cope Materials Sciences. Working distance 9.7 mm. No cover glass correction	BS.8810 Plan PLMi 10x/0.25 infinity corrected IOS objective for bright and dark field for bScope Materials Sciences. Working distance 9.3 mm. No cover glass correction	BS.8820 Plan PLMi 20x/0.40 infinity corrected IOS objective for bright and dark field for bScope Materials Sciences. Working distance 7.2 mm. No cover glass correction	BS.8850 Plan PLMi S50x/0.70 infinity corrected IOS objective for bright and dark field for bScope Materials Sciences. Working distance 2.5 mm. No cover glass correction
BS.8880 Plan PLMi S80x/0.80 infinity corrected IOS objective for bright and dark field for bScope Materials Sciences. Working distance 0.8 mm. No cover glass correction	BS.8800 Plan PLMi S100x/0.85 infinity corrected IOS objective for bright and dark field for bScope Materials Sciences. Working distance 0.8 mm. No cover glass correction
Objectives IOS Plan PLMi 45 mm for bright contrast, no cover glass correction
BS.8102 Plan PLMi 2/0.70 infinity corrected IOS objective for bScope Materials Sciences. Working distance 11 mm. No cover glass correction	BS.8105 Plan PLMi 5x/0.12 infinity corrected IOS objective for bright field for bScope Materials Sciences. Working distance 26.1 mm. No cover glass correction	BS.8110 Plan PLMi 10x/0.25 infinity corrected IOS objective for bright field for bScope Materials Sciences. Working distance 20.2 mm. No cover glass correction	BS.8120 Plan PLMi 20x/0.40 infinity corrected IOS objective for bright field for bScope Materials Sciences. Working distance 8.8 mm. No cover glass correction
BS.8150 Plan PLMi S50x/0.70 infinity corrected IOS objective for bright field for bScope Materials Sciences. Working distance 3.7 mm. No cover glass correction	BS.8180 Plan PLMi S80x/0.80 infinity corrected IOS objective for bright field for bScope Materials Sciences. Working distance 1.3 mm. No cover glass correction	BS.8100 Plan PLMi S100x/0.85 infinity corrected IOS objective for bright field for bScope Materials Sciences. Working distance 0.4 mm. No cover glass correction
Camera Accessories (only for BS.4xxx series)
BS.9810 C-mount adapter with 1x magnification for 1 inch sensor cameras. For BS.4xxxx series	BS.9850 C-mount adapter with 0.5 x magnification for 1/2 inch sensor cameras. For BS.4xxxx series	BS.9865 C-mount adapter with 0.65 x magnification for 2/3 inch sensor cameras. For BS.4xxxx series
Mscellaneous
BS.9047 Stand extension pole 280 mm, can be screwed on the standard supplied pole of BS.4xxxx models	BS.9986-R Spare 5W LED for BS.4xxxx reflected illumination

bScope materials science (metallurgical)
bScope for materials science

The well-equipped bScope® microscopes for materials science are especially configured for observation of all kinds of materials such as metals, plastics, wood, glass, etc.

These microscopes are extensively used in the materials research and quality assurance laboratories

The design of the bScope® is both ergonomic and evolutive. Wide field WF 10x/22 mm eyepieces and low focusing controls to minimize fatigue during long working sessions and therefore provide more comfort for microscopists. The robust and compact size of the bScope® together with the Cable Storage System allow more working space, safer operation and easy storage

Extended warranty applies, see "General terms and conditions” for more details (article 10 - Guarantee)

Highlights

• Materials science microscopes

• Trinocular models

• WF 10x/22 mm eyepieces

• Reversed ball-bearing quadruple nosepiece

• With slot for polarization filter

• Plan M-IOS objectives

• Polarizer and analyzer filters

• Rackless integrated X-Y mechanical stage

• Color coded condenser

• 3 W NeoLED™ adjustable transmitted and reflected NeoLED™ illumination

• Integrated carrying grip

• Cable Storage System and anti-theft system

Specifications

EYEPIECE(S)

• Wide field WF 10x/22 mm eyepieces with 22 mm field of view (Ø 30 mm tube)



HEAD
The bScope® is equipped with:

• A Siedentopf type head, 360° rotatable

• 30° inclined tubes

• a ± 5 diopter adjustment on left eyepiece

• The interpupillary distance is adjustable between 48 to 76 mm

• The trinocular head comes with a Ø 23.2 mm tube, ensuring maximum flexibility

• The prisms inside the heads are designed to minimize the light absorption for perfect digital imaging

• The trinocular head has a light path selector (100:0 / 0:100) and generates an erect image



The interpupillary distance is adjustable between 48 to 76 mm. The trinocular head comes with a Ø 23.2 mm tube, ensuring maximum flexibility. The prisms inside the heads are designed to minimize the light absorption for perfect digital imaging. The trinocular head has a light path selector (100:0 / 0:100) and generates an erect image

NOSEPIECE
Revolving and reversed ball-bearing quadruple nosepiece

OBJECTIVES
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope® objectives enable the bScope® to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure perfect centering of the objectives

Infinity corrected achromatic DIN plan M-IOS 5x/0.12, 10x/0.25, 20x/0.40, 50x/0.70 IOS objectives. Optional plan M-IOS S80x/0.80 and S100x/0.85 DIN IOS objective are also available

The S80x and S100x objectives are spring loaded.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING

• Double coaxial, low-positioned coarse and fine adjustments with 180 graduations.

• Precision 1.1 µm, 200 µm per rotation, total travel range is approximately 19 mm

• Supplied with an adjustable rack stop to prevent damage to sample and objectives

• The coarse adjustment is equipped with friction control

STAGES

• The bScope® is equipped with a scratch resistant185 x 140 mm stage with integrated 74 x 48 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder

• The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatigue during long working sessions

CONDENSER FOR BRIGHTFIELD
The standard height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder. The condenser is color coded. Optionally available swing-out Abbe condenser (BS.9105)

POLARISATION
The bScope® has an integrated slot above the nosepiece for an optional polarization filter for transmitted illumination

NEOLED™ REFLECTED ILLUMINATION

Reflected intensity adjustable 3 W NeoLED™ Köhler illumination with external power supply, push-pull type rotatable polarizer and push-pull analyzer, built-in condenser with iris diaphragm and field iris diaphragm. Integrated rotating filter disc with green, blue, yellow and white filters

NEOLED™ TRANSMITTED ILLUMINATION

The 3 W adjustable Köhler NeoLED™ diascopic illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use. The innovative NeoLED™ design offers larger apertures, allowing the optical system of the bScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED™ is the low energy consumption, no heating and a long operating lifetime

KÖHLER ILLUMINATION
Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. Generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source

CORDLESS USE
The optional rechargeable batteries turn the bScope® into a cordless system (only available for the transmitted illumination)

CSS – CABLE STORAGE SYSTEM
This system allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage

CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft

PACKAGE CONTENT
Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, a spare fuse, white filter and user manual
