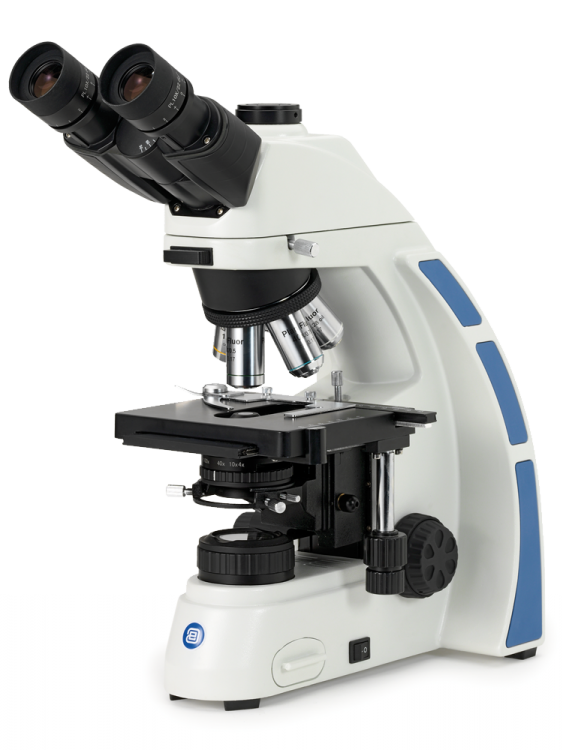

OX.3035 Trinocular Oxion microscope with plan PL 4/10/S40/S100x oil IOS objectives

Oxion series for brightfield
Trinocular Oxion microscope with plan PL 4/10/S40/S100x oil IOS objectives

Model : OX.3035

• HWF 10x/22 mm eyepieces

• Trinocular head, 30° inclined tubes. Tubes can be positioned in upper or lower positions

• Reversed quintuple revolving nosepiece on ball-bearings

• Plan 4x, 10x, S40, S100x oil immersion infinity corrected IOS objectives

• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

• 150 x 140 mm stage with 76 x 50 mm mechanical stage

• Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotation. Total travel approximately 28 mm

• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

• Condenser with slot for optional slider with darkfield or phase contrast

• Diascopic 3 W NeoLED Köhler illumination with adjustable intensity with internal power supply 100-240 V (CE)

• Supplied with power cord, dust cover and 5 ml oil immersion, in styrofoam case

ACCESSORIES

AE.3210 HWF 10x/22 mm eyepiece	AE.3215 HWF 15x/13 mm eyepiece	AE.3223 HWF 10w/22mm eyepiece with 10mm/100 micrometer reticle	AE.3225 Pair of eyecups
AE.3102 Infinity plan PL 2x/0.06 IOS objective	AE.3104 Infinity plan PL 4x/0.10 IOS objective. Working distance 11.9 mm	AE.3106 Infinity plan PL 10x/0.25 IOS objective. Working distance 12.1 mm	AE.3108 Infinity plan PL 20x/0.40 IOS objective. Working distance 1.5 mm
AE.3110 Infinity plan PL S40x/0.65 IOS objective. Working distance 0.36 mm	AE.3112 Infinity plan PL S60x/0.85 IOS objective. Working distance 0.3 mm	AE.3114 Infinity plan PL S100x/1.25 oil immersion IOS objective. Working distance 0.18	86.521 Plan PL S100x/1.25 oil immersion objective with iris diaphragm. Working distance
AE.3130 Infinity plan phase PLPH S40x/0.65 IOS objective. Working distance 0.36 mm	86.550 Plan Fluarex PL-FL 4x/0.15 IOS objective. Working distance 21.6 mm	86.552 Plan Fluarex PL-FL 10x/0.35 IOS objective. Working distance 2.9 mm	86.554 Plan Fluarex PL-FL 20x/0.60 IOS objective. Working distance 1.5 mm
86.556 Plan Fluarex PL-FL S40x/0.80 IOS objective. Working distance 0.60 mm	AE.3144 Infinity plan semi apochromatic Fluarex PL-FL 4x/0.13 IOS objective	AE.3172 Infinity plan PL-Mi 5x/0.15 IOS objective. Working distance 10.8 mm. No cover	AE.3173 Infinity plan PL-Mi 10x/0.25 IOS objective. Working distance 10 mm. No cover
Differential interference contrast (DIC) for Delphi-X Inverso Life Science models
AE.3175 Infinity plan PL-Mi 20x/0.40 IOS objective. Working distance 4 mm. No cover glass	AE.3177 Infinity plan semi apochromatic PL-SAMi 50x/0.55 IOS objective. Working distance 7.9 mm. No cover glass correction	AE.3179 Infinity plan semi apochromatic PL-SAMI 100x/0.80 IOS objective. Working distance 2.1 mm. No cover glass correction	AE.3180 Oxion Phase rings centering telescope
AE.3185 Slider with darkfield stop	AE.3186 Slider phase contrast kit with plan phase 10x/20x/40x/S100x oil objectives and 2 sliders with phase contrast rings for PLPH 10x/S40x and 20x/S100x objectives	AE.3187 Slider with phase rings for PLPH 10x and S40x phase objectives	AE.3189 Slider with phase rings for PLPH 20x and S100x phase objectives
AE.3190 Polarizer/analyzer set for lamp house and nosepiece	AE.3192 Analyzer mounted in slider for nosepiece	AE.3194 Polarizer for lamp house, 360° rotatable	AE.3196 White opaque filter 45 mm for lamphouse
AE.3198 Blue filter 45 mm for lamphouse	AE.3199 Glass fuses 3.15A 250V, 10pcs	AE.3200 Yellow filter 45 mm for lamphouse	AE.3202 Green filter 45 mm for lamphouse
AE.3205 Blue interference 480 nm, 20 mm diameter filter in slider for reflected illumination of Materials Science attachment	AE.3206 Green interference 520-570 nm filter, 20 mm diameter filter in slider for reflected illumination of Materials Science attachment	AE.3208 White color balance interference filter for reflected illumination of Materials Science attachment	AE.5120-2 Standard 23.2 mm tube. for Oxion upright (revision 2) and Oxion Inverso inverted
AE.5130 Universal SLR adapter with built-in 2x lens for standard 23.2 mm tube. Needs	AE.5025 T2 ring for Nikon D SLR digital camera	AE.5040 T2 ring for Canon EOS SLR digital camera	OX.9810 C-mount 1x photo adapter for Oxion (revision 2)
OX.9833 Photo port adapter with 0.33x lens for Oxion (revision 2) microscopes and 1/3 inch camera with C-mount	OX.9850 Photo port adapter with 0.5x lens for Oxion (revision 2) microscopes and 1/2 inch camera with C-mount	OX.3010 Aluminium flight case for Oxion	OX.3011 Aluminium case for Oxion
AE.9916 Euromex dust cover extra-large. For BioBlue (trino), EcoBlue (trino), BioBlue.Lab, Oxion, bScope, iScope, StereoBlue and NexiusZoom	AE.9919 Nylon bag for Oxion upright, 56(h) x 29(w) x 23(d) cm	SL.1385 100 W Mercury lamp	SL.5510 3W LED replacement for Oxion
PB.5155 Microscope slides 76 x 26 mm, ground edges, 50 pieces per pack	PB.5157-W Microscope slides 76 x 26 mm, ground edges. White frosted side, 50 pieces per pack	PB.5157-B Microscope slides 76 x 26 mm, ground edges. Blue frosted side, 50 pieces per pack	PB.5160 Microscope slides 76 x 26 mm with cavity, grinded edges. 10 pieces per pack
PB.5165 Cover glasses 18 x 18 mm, 0.13-0.17 mm, 100 pieces	PB.5255 Immersion oil, 25 ml. Refraction index n = 1.515	PB.5274 Iso propyl alcohol 99%, 200 ml	PB.5275 Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabs
PB.5276 Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air blower, 3 pcs Allen key, 1.5, 2, 2.5 mm, lens cleaning fluid 20 ml, cleaning cloth 140 x 140 mm, 100 pcs Lens tissue sheets, tube of maintenance grease, 10 ml bottle of oil, packed in a nice toolbox

Oxion

The Oxion series has been designed with all kind of Life Sciences applications and great durability in mind. This resulted in a modern, robust and high level microscope for everyday use, equipped with excellent optical and mechanical components. Specific attention to production methods resulted also in an excellent price/performance ratio

The microscopes of the Oxion series are dedicated to professionals in Life Sciences applications, laboratories of universities or research centers, but also for routine medical applications and veterinary medicine. Besides the brightfield contrast method, configurations with darkfield contrast or simple polarization can be used

Thanks to the high resolution optics and state-of-the-art components, these microscopes can be widely used from routine to fundamental research applications

Highlights

• HWF 10x/22 mm eyepieces

• Bino and trino systems

• Optional tilting head

• Reversed nosepiece for 5 objectives

• Semi plan and plan IOS objectives

• 150 x 140 mm stage

• Abbe condenser

• 3 W LED illumination for brightfield applications

• Ergonomical stand and head

• 10 years warranty

Specifications

EYEPIECE(S)

• HWF 10X/22 mm eyepieces with ± 5° diopter adjustements on both eyepieces

• All eyepieces can be secured with an Allen screw

HEAD

• Binocular and trinocular Siedentopf type heads with 30° inclined tubes

• Interpupillary distance from 50 to 75 mm

• A unique rotating system allows an ergonomical positioning of both tubes in an upper (431 mm) and in a lower position (397 mm)

• An ergonomic tilting head is also available. (OX.5700-ADD)


NOSEPIECE
Reversed nosepiece for a maximum of five objectives on ball bearings

OBJECTIVES - IOS INFINITY CORRECTED SYSTEM

• Semi plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives

• Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives standard, optional 20x/0.40 and S60x/0.85 objectives
• Plan phase contrast S40x/0.65 and S100x/1.25 oil immersion IOS objectives

• Plan semi apochromatic Fluarex 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives standard, optional 20x/0.50 objectives

As an option available: plan 20x/0.40 infinity corrected IOS objective and plan S60x/0.85 infinity corrected IOS objective
All S40x, S60x and S100x oil immersion objectives are spring loaded.
All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated

STAGE
Equipped with double slide holder

• 150 x 140 mm stage with integrated 76 x 50 mm X-Y mechanical stage

• The Oxion can be supplied with a heating stage with PID temperature controller which can be set up to 50° Celsius (Only available for new microscopes)

CONDENSER FOR BRIGHTFIELD

• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm

• A darkfield stop in slider can be inserted in the condensor for for darkfield contrast up to 400x magnification (optional)

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 28 mm

• Supplied with an adjustable rack stop to prevent damage to sample and objectives

• The coarse adjustments are equipped with friction control

ILLUMINATION FOR BRIGHTFIELD

• All models are supplied with a 3 W adjustable NeoLED™ illumination with integrated 100-240 V power supply

• Köhler illumination with field diaphragm

STORAGE AND TRANSPORTATION

from left to right: OX.3011 - AE.9916

PACKAGE CONTENT

• Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with a S100x objective

• All packed in a polystyrene box
