60.200 Binocular stereo microscope P-20, head with 45° inclined tubes

AP and P series
Binocular stereo microscope P-20, head with 45° inclined tubes, 2x/4x revolving objective, 20x/40x magnification with rack and pinion stand equipped with 10 W incident and transmitted halogen illumination

Model : 60.200

• A pair of secured WF10x/20mm wide field eyepieces with eyecups

• Binocular head with 45° inclined tubes and 360° rotatable. Diopter adjustment on one tube

• Interpupillary distance adjustable between 55 and 75 mm 2x4x revolving objective, 20x/40x magnification

• Field of view 10 mm and 5 mm. Working distance 52 mm

• Stand with rack and pinion focusing with slip-clutch mechanism, range 40 mm

• Supplied with black/white stage plate, transparent plate and 2 object clamps

• With 10W 12V incident and transmitted halogen illumination which can be used
  simultaneously

• Paint with Antibacterial Protection Layer

• Supplied with power cord, dust cover, spare fuse and user manual. all packed in styrofoam
  case

ACCESSORIES

ED.6005 Pair of HWF 5x/22mm eyepiece for AP and P series	ED.6010 Pair of HWF 10x/20 mm eyepiece for AP and P series	ED.6015 Pair of HWF 15x/12 mm eyepiece for AP and P series	ED.6020 Pair of HWF 20x/10 mm eyepiece for AP and P series
ED.6110 HWF 10x/20 mm eyepiece with 10mm/100 micrometer for AP and P series	ED.6099 Pair of eyecups for AP and P series	50.871 Black/White stage plate 94 mm diameter	50.873 Glass stage plate 94 mm diameter
ED.9956 Stage plate black/white 60 mm diameter	50.882 Spare halogen bulb 12 V 10 W for P and AR series (transmitted illumination)	50.884 Spare bulb 12 V 10 W for AP-series	50.975 External 100-240 V mains adapter
AE.1112 Micrometer 76 x 26 mm slide, 50 mm/500 divisions, 100 μm per division	AE.9918 Nylon microscope bag, dimensions 26 x 17 x 40 cm	PB.5245 Lens cleaning paper, 100 sheets per pack	PB.5274 Iso propyl alcohol 99%, 200 ml
PB.5275 Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabs	AE.1370 Set of 3 rechargeable AA batteries	PB.5276 Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air blower, 3 pcs Allen key, 1.5, 2, 2.5 mm, lens cleaning fluid 20 ml, cleaning cloth 140 x 140 mm, 100 pcs Lens tissue sheets, tube of maintenance grease, 10 ml bottle of oil, packed in a nice toolbox

AP series

The microscopes of the AP series are specifically designed for educational purposes. They are compact and robust and come with dual magnifications revolvers and interchangebale objectives mounted in sliders

P series

The microscopes of the P series are specifically designed for industrial purposes and come with both dual 10/30x and 20x/40x magnifications and by using of optional eyepieces this can result in magnifications from 5x to 80x

These microscopes are equipped with a rack & pinion stand and a 360° rotatable head

The P series are compact and light weight, ideal microscopes for industrial applications either in a workplace or be taken to any other location

Highlights for AP series

• Magnifications from 10-120x

• Small and robust

• Binocular head with vertical or 45° inclined tubes

• Secured WF10x/20 mm eyepieces

• Pillar stands with or without illumination

• LED illumination for cordless use

Highlights for P series

• Binocular models

• Easy to use

• 360° revolving rotatable head with 45° inclined tubes

• Secured WF 10x/20 mm eyepieces

• 10x/30x and 20x/40x magnification in revolving nosepiece

• Robust rack & pinion stand with powerful halogen or LED illumination

• LED illumination with rechargeable batteries for cordless use

• Incident and transmitted illuminations can be used simultaneously

• Light weight; easy to carry to any location

Specifications for AP series

EYEPIECE
Pair of secured wide field eyepieces WF10x/20 mm. Supplied with eyecups

HEAD
Binocular head with vertical or 45° inclined tubes. One tube supplied with diopter adjustment. Interpupillary distance from 55 to 75 mm

OBJECTIVES

• The AP-1 and AP-2 models are as a standard supplied with a 2x magnification objective in slider

• The AP-7 LED models are supplied with revolving 1x/3x objectives for total magnification of 10 and 30x with field of views from 20 to 6.7 mm

• The AP-8 and AP-8 LED models are supplied with revolving 2x/4x objectives for total magnification of 20 and 40x with field of views from 10 to 5 mm

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAND
Pillar stand with a 40 mm coarse adjustment. Supplied with black/white object plate and 2 object clamps. Models with transmitted illumination are also supplied with a glass object plate

ILLUMINATION

• The AP-1 is supplied without illumination

• The AP-2 is supplied with an incident 10 W 12 V  Tungsten illumination and internal power supply

• The AP-8 is supplied with a transmitted and incident 10W 12V Tungsten illumination and internal power supply

• The AP-7 LED and AP-8 LED are supplied with a transmitted and incident LED illumination with three rechargeable batteries for maximum 35 hours cordless operation. With external mains adapter/charger

CAMERAS
Euromex offers a wide range of industrial and education grade cameras, chapter 3 (Digital Solutions). For binocular microscopes, the camera replaces one of the eyepieces. Warranty for the camera is 2 years

PACKAGING

Supplied with power cord, dust cover, a spare fuse and user manual. All packed in a polystyrene box

Downloads for AP series

 AP_series_Product_Data_Sheet_English

https://www.euromex.com/en/products/branches/education-stereo-microscopes/ap-series/

Specifications for P series

EYEPIECES
Secured pair wide field eyepieces WF10x/20 mm. Supplied with eyecups

HEAD
Binocular head with 45° inclined tubes. One tube supplied with diopter adjustment. Interpupillary distance from 55 to 75 mm

OBJECTIVES

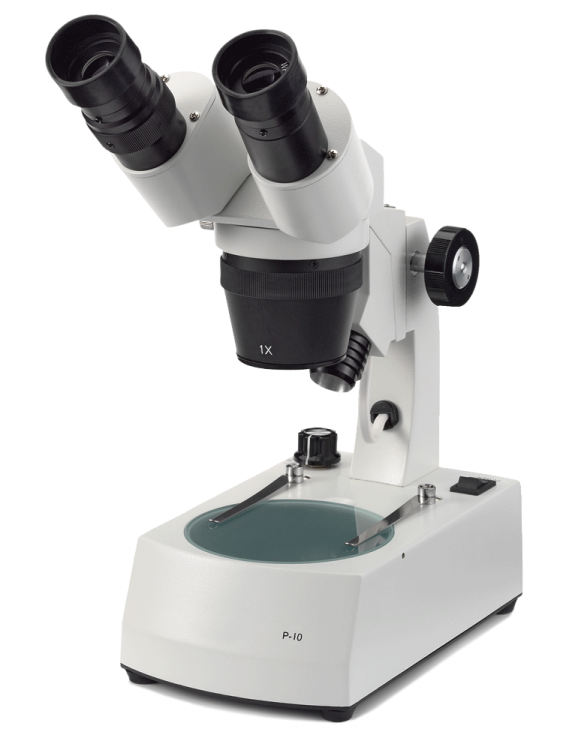

• The P-10 and P-10 LED models are supplied with revolving 1x/3x objectives for total magnification of 10 and 30 times with fields of view from 20 to 6.7 mm

• The P-20 and P20 LED models are supplied with revolving 2x/4x objectives for total magnification of 20 and 40 times with fields of view from 10 to 5 mm.

By using 5x, 15x or 20x eyepieces magnifications from 5 to 80x can be achieved
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAND
Robust pillar stand with 35 mm coarse adjustment. Supplied with white/black object plate and two object clamps

ILLUMINATION
The P-10 and P-20 models are supplied with 10 W 12 V halogen transmitted and incident illumination and internal power supply. Both illuminators can be operated independently or simultaneously

The P-10 LED and P-20 LED models are supplied with high power LED transmitted and incident illumination. With three rechargeable batteries for maximum 35 hours continuous cordless operation. Both illuminators can be operated independently or simultaneously

CAMERAS
Euromex offers a wide range of industrial and laboratory grade cameras. For P series, the camera replaces one of the eyepieces

PACKAGING
Supplied with pair of eyecups, power cord (external mains plug-in adapter for LED models), dust cover, a spare fuse and user manual (and spare bulb for halogen models). All packed in a polystyrene box

Downloads for P series

  P-series_product_datasheet_English
