EduBlue

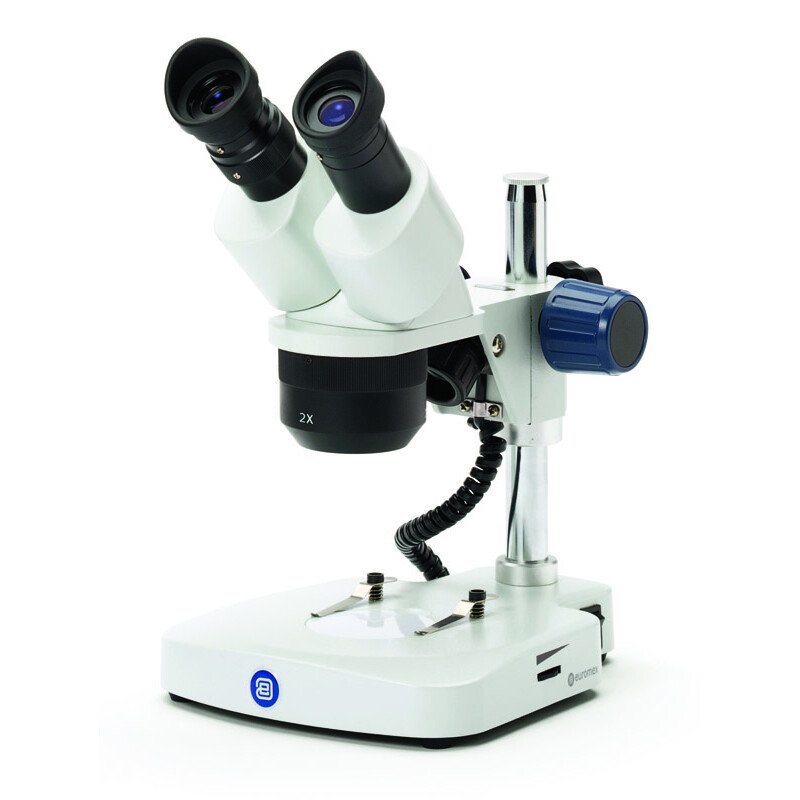

Binocular stereo microscope EduBlue, 2x/4x revolving objective, 20x/40x magnification with pillar stand with incident and one transmitted 1 W Dual color LED illumination with external 5 Vdc USB-C and 100-240 Vac multiplug power adapter (CE) (50/60 Hz). Cordless use with 3 rechargeable AA NiMH batteries
Model : ED.1402-P
- A pair of secured WF10x/20mm wide field eyepieces with eyecups
- Binocular head with 45° inclined tubes. Diopter adjustment on one tube. Interpupillary
distance adjustable between 55 and 75 mm
- Dual 2x/4x revolving objective, 20x/40x magnification. Field of view 10 mm and 5 mm.
- Working distance 60 mm. Maximum object height 97 mm
- Pillar stand with rack and pinion focusing. Supplied with black/white stage plate,
transparent plate and 2 object clamps
- 1W incident and transmitted Dual Color LED illumination with external 5 Vdc USB-C and
100-240 Vac multiplug power adapter (CE) (50/60 Hz). Cordless use with 3 rechargeable AA
NiMH batteries. Both illumination intensities can be adjusted separately. Paint with
Antibacterial Protection Layer
- Supplied with dust cover in Styrofoam case
ACCESSORIES
|
 |  |  |  |
ED.6005
Pair of HWF 5x/22mm eyepiece for AP and
P series | ED.6010
Pair of HWF 10x/20 mm eyepiece for AP and
P series
| ED.6015
Pair of HWF 15x/12 mm eyepiece for AP and
P series
| ED.6020
Pair of HWF 20x/10 mm eyepiece for AP and
P series
|
|
 |  |  |  |
ED.6110
HWF 10x/20 mm
eyepiece with 10mm/100 micrometer for
AP and P series | ED.6099
Pair of eyecups for
AP and P series
| ED.9570
Pair of object clamps
for stage
| ED.9950
Stage plate frosted glass opaque 60 mm diameter
|
|
 |  |
|  |
ED.9956
Stage plate black/white
60 mm diameter | ED.9975
External mains/charger adapter 100-240 Vac /
4.5 Vdc (50/60 Hz) | AE.9975-DL
External mains/charger adapter 100-240 Vac/5 Vdc (50/60Hz). For Dual LED version | ED.4300
Aluminium case for
EduBlue series |
|
 |  | | |
SL.5504
LED replacement unit
for EduBlue, incident illumination
| SL.5505
LED replacement unit
for EduBlue, transmitted illumination
| ED.9981-R
Single color LED replacement unit for EduBlue, incident illumination
| ED.9981
Single color LED replacement unit for EduBlue, transmitted illumination
|
|
| | |  |  |
ED.9991-DLR
Dual color LED
replacement unit for EduBlue, incident illumination
| ED.9991-DL
Dual color LED
replacement unit for EduBlue, transmitted illumination
| AE.1112
Micrometer 76 x 26 mm slide, 50 mm/500 divisions, 100 μm per division | AE.9918
Nylon microscope bag, dimensions
26 x 17 x 40 cm |
|
 |  |  |  |
PB.5245
Lens cleaning paper,
100 sheets per pack | PB.5274
Iso propyl alcohol 99%,
200 ml | AE.5227
Glass fuses 1 A 250 V,
10 pieces
| PB.5275
Cleaning kit: lens fluid,
lint free lens tissue/paper, brush, air blower,
cotton swabs
|
|
 |  |  | |
PB.5276
Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air
blower, 3 pcs Allen key, 1.5, 2, 2.5 mm, lens cleaning fluid 20 ml, cleaning cloth 140 x 140 mm, 100 pcs Lens tissue sheets, tube of maintenance grease, 10 ml bottle of oil, packed in a
nice toolbox | AE.1370
Set of 3 rechargeable
AA batteries
| AE.9912
Euromex dust cover medium (40 x 46 cm).
For MicroBlue, EcoBlue, BioBlue bino, EduBlue,
X-serie
| |
EduBlue
The outstanding optical performance of the ergonomic Euromex BlueLine stereo microscopes enables long productive working sessions for students, for beginner or advanced science teaching classes
The EduBlue microscopes are ideal for educational purposes and are available with dual or triple pair of objectives for 5x up to 80x magnifications and equipped with LED incident and transmitted illuminations. The two parallel optical trains allow the three dimensional observation of small insects, plants, stones and minerals
Highlights
- Designed for education
- Robust and sturdy, with secured eyepieces
- WF 10x/20 mm eyepieces
- Dual or triple magnifications
- Binocular and trinocular models available
- Rack & pinion and pillar stands
- 1 W LED illumination
- Provided with APL (Antimicrobial Protection Layer)
- Quick focus scale
- With rechargeable batteries for cordless use
- Digital models with 4.0 MP WiFi camera available
- Ergonomic carrying grip
Specifications
EYEPIECE(S)
Pair of secured WF10x/20 mm eyepieces supplied with eyecups
HEAD
- Binocular head with 45° inclined tube
- Trinocular head with 45° inclined tubes and 23.2 mm tube. The standard trinocular tube accepts all standard 23.2 mm C-mount objectives
- Diopter adjustment of ± 5 on one side
- Interpupillary distance adjustable between 55 and 75 mm
- Digital head is supplied with a 4.0 MP USB-2 1/1.8” CMOS WiFi camera
- Maximum resolution 2688 x 1512 pixels
DUAL MAGNIFICATION OBJECTIVES
- Revolving nosepiece with dual 1x/3x and 2x/4x , which can provide standard magnifications of 10x and 30x or 20x and 40x
- Working distance 60 mm
- Field of view of 20/6.7 mm or 10/5 mm
- Magnifications can be altered using optional eyepieces
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
TRIPLE MAGNIFICATION OBJECTIVES
- Revolving nosepiece with triple 1x/2x/3x and 1x/2x/4x, which can provide standard magnifications of 10x, 20x and 30x or 10x, 20x and 40x
- Working distance 60 mm
- Field of views of 20/10/6.7 mm or 20/10/5mm
- Magnifications can be altered using optional eyepieces
(Photo: Triple magnification)
STAND
- The rack & pinion and pillar stands of the EduBlue are equipped with ergonomic designed flat bases, complete with 2 object clamps and Ø 60 mm transparent and black/white stage plate
- The coarse adjustment is equipped with tension control
- The stands are alloy metal casted with hardened coating
- The rack & pinion stands of the EduBlue are equipped with graduations and focus point indicator for quick focussing
EVO models are equipped with a build-in moveable object stage
ILLUMINATION
- The transmitted and incident 1 W LED illuminations can be used simultaneously and the light intensities can be adjusted separately
- 60 mm working distance
- Evo models have an additional flexible arm with 1 W LED illumination
STORAGE AND TRANSPORTATION
from left to right: ED.4300 - AE.9912
PACKAGE CONTENT
- Supplied with an external 100-240 V mains adapter/charger and three rechargeable batteries for corded and cordless use, dust cover, Ø 60 mm transparent and black/white stage plates, eyecups and user manual
- All packed in a polystyrene box
DIGITAL MODELS
CAMERA
- Digital head is supplied with a 4.0 MP USB-2 1/1.8” CMOS WiFi camera
- A maximum resolution of 2688 x 1512, 30 fps (Frame rates have been determined at optimal conditions)
- 12 bits grayscale conversion and 24 bits color rendering
- The camera streams H.264 encoded high resolution images simultaneously to several WiFi enabled smartphones, tablets or computers with iOS, Android and Windows operating systems
- It can also operate via USB 2 and ethernet in combination with a PC or Mac computer
- Delivered with a micrometer 1 mm/100 calibration slide
- Warranty for the camera is 2 years
SOFTWARE
- ImageFocus Alpha software can be used for Windows based devices and WiFi connected PC and is supplied on CD
- Apps for Android for this camera are supplied on cd or can be downloaded from this page under
- Downloads (free of charge) of from the Apple Store (free of charge)
- Delivered with ImageFocus Alpha for capturing of images and videos
- This software also allows a full range of analysis like measurements on still and live images and annotations on captured images
- Save images in .jpg, .tif, .bmp or .dicom formats, save videos in .avi format
- Images can be annotated and measurements can be performed on live or captured images
- Compatible with Windows 10 and higher, all 32 and 64 bits configurations
- A Mac OS version is available
- Updates can be downloaded on our website
