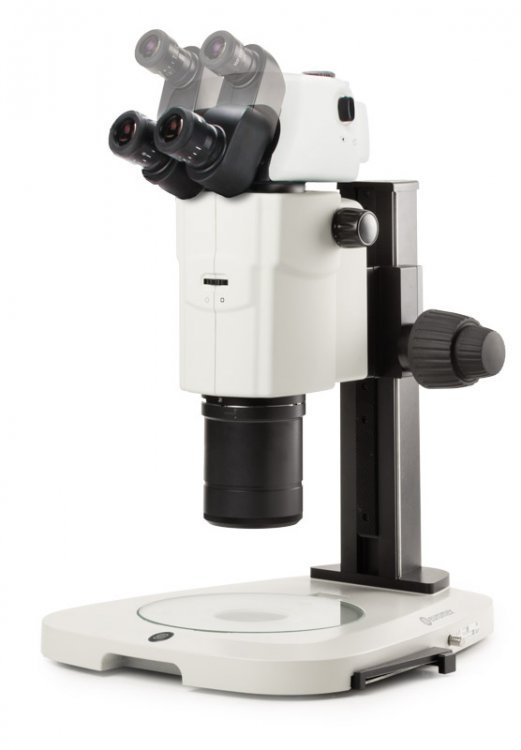

UZ.1803 UltraZoom 1:18 CMO stereomicroscope

UltraZoom Common Objective Stereomicroscope
UltraZoom 1:18 CMO stereomicroscope, 20° trinocular head with EWF 10x/23 eyepieces and photo port. Apochromatic 1x CMO NA 0.15 objective with 60 mm working distance for magnifications from 7.5 to 135x. Large ergonomic 8W LED stand

Model : UZ.1803

• A pair of secured wide field eyepieces EWF10x/23mm with diopter adjustment

• Trinocular head with 20° inclined tubes and photo port.

• Interpupillary distance adjustable between 55 and 75 mm

• Plan Apochromatic 0.75x to 13.5x zoom Common Main Objective NA 0.15, magnification
  from 7.5 to 135x. Field of view from 30.67 mm to 1.7 mm. Working distance 60 mm

• Ergonomically stand with coarse and fine adjustments, 180 mm object plate and 2 object
  clamps.

• Intensity adjustable transmitted 8W LED with oblique contrast illumination slider with
  internal 100-240 Vac power supply

• Supplied with dust cover in Styrofoam case

ACCESSORIES

UltraZoom

High end zoom microscope for materials science, life science and fluorescence
The Euromex UltraZoom series combines ergonomic design, advanced optics and flexibility, making it an indispensable tool for researchers and industrial professionals alike. Experience unmatched precision and comfort with this innovative industrial zoom microscope

Oblique Contrast Illumination

Unmatched clarity for complex transparent samples. The Oblique Contrast Illumination (OCI) feature on our industrial stereo microscope is a must have for inspecting intricate or highly detailed specimens. Perfect for highlighting minute structures, subtle textures, micro-defects. It is it an invaluable tool for quality control, failure analysis, or any task requiring extreme precision

Highlights

• Ergonomic tilting head from 0 to 30°

• Binocular 20° head

• Swiveling eyepiece tubes for two heights

• EWF 10x/23 mm eyepieces

• Plan-apo lens for superb imaging

• Fine and coarse focus controls

• Zoom Ratio: 18:1

• Magnification 7.5 to 135x

• Oblique Contrast Illumination

• Transmitted 8 W NeoLED™ illumination

• Fluorescence attachment available

• 10 years warranty

Specifications

EYEPIECES
Pair of EWF 10x/23 mm eyepieces

HEAD

• Ergonomic 0-30° tilting head (UZ.1808) or binocular 20° head (UZ.1803)

• Diopter ± 5 adjustment on both eyepieces

• Interpupillary distance from 55 to 75 mm

• Photo port with 1x c-mount for 1” cameras

CENTRAL ZOOM UNITS
1:18 for total magnifications from 0.75 to 13.5x

COMMON MAIN OBJECTIVE

Standard supplied with a 1x plan apochromatic Common Main Objective, WD 60 mm

WD = working distance
All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated

STAND

• Large ergonomic stand with ø 180 mm object plate

• Oblique Contrast Illumination slider

• Coaxial coarse and fine adjustment

• Internal 100-240 Vac power supply

MAGNIFICATIONS
Objective with 60 mm working distance, standard outfit

ILLUMINATION
Supplied with 8 W NeoLED™ transmitted and Oblique Contrast Illumination built-in 100-240 V power supply

OBLIQUE CONTRAST ILLUMINATION
Oblique illumination enables the specimen to be illuminated from one side only (off-axis) by having the light source titled or directed from an oblique angle or from the side. Only diffracted light on a single side is admitted to the objective and, because of the obliquity of illumination, diffracted light on the other side misses the objective altogether. As a result, details in pseudo-relief from an otherwise almost invisible colorless specimen are than revealed

FLUORESCENCE
Epi-fluorescence attachment UZ.9200-NF

• With fiber light guide

• UV shield

• 4 LEDs for fluorescence light source

• Power supply

• Without filter sets and without filter blocks. Each installed filter set needs an empty block (UZ.9749). Each position without filter set needs to be filled up with a UV.9749-BF1

• The attachment weighs 2 kg

PACKAGE CONTENT
Supplied with power cord, dust cover, tools and user manual. All packed in sturdy box
