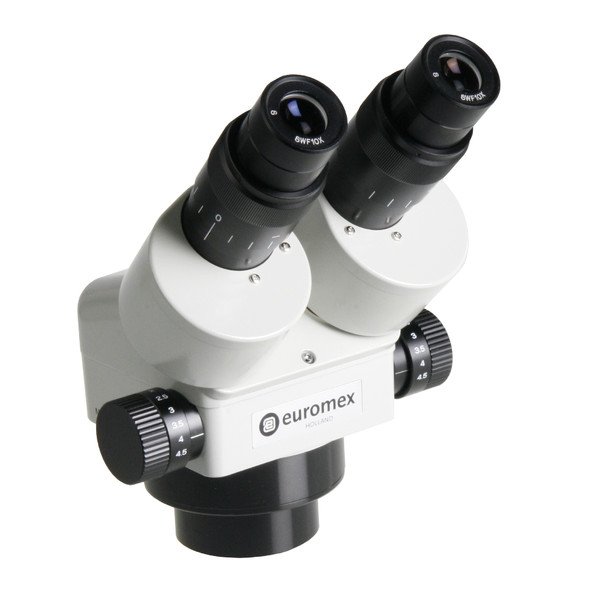

ZE.1671 Trinocular 1x to 7x ZE-series stereo zoom head with fixed 45° inclined tubes with SWF 10x/23 eyepieces

EE and ZE series
Trinocular 1x to 7x ZE-series stereo zoom head with fixed 45° inclined tubes with SWF 10x/23 eyepieces

Model : ZE.1671

• A pair of SWF10x/23mm wide field eyepieces

• Trinocular head with fixed 45° inclined tubes

• Diopter adjustment on two tubes

• Interpupillary distance adjustable between 55 and 75 mm

• With 1x to 7x zoom objective. Magnification from 10x to 70x

• Field of view from 23 to 3.29 mm. Working distance 104 mm

• Supplied with dust cover in Styrofoam case

ACCESSORIES

65.983 Head 85 mm holder for Z-series and black universal stand NZ.9025
Head holders
ST.1790 Standard stereo 84 mm diameter head holder with hole for pillar mounting with 20 mm diameter of Z-series. Not for boom stands	ST.1796 Standard stereo 84 mm diameter head holder with hole for pillar mounting with 20 mm diameter of Z-series. With coaxial course and fine adjustment with graduations. Not for boom stands
AE.1834 Pair of super wide field eyepieces SWF 12.5x/20 mm	AE.1836 Pair of super wide field eyepieces SWF 10x/23 mm	AE.1839 Micrometer wide field eyepiece SWF 10x, focusing lens	AE.1840 Pair super wide field eyepieces SWF 30x/7,5 mm
AE.1112 Micrometer 76 x 26 mm slide, 50 mm/500 divisions, 100 μm per division	AE.1818 Additional lens 1.5x for zoom ZE.1657. Working distance 57 mm	AE.1843 Protection glass for EE.1522 and EE.1552 (1x/2x and 1x/3x)	AE.1845 Protection glass for zooms
AE.1855 Additional lens 0.3x for zooms ZE.1624/54/ 70/71. Working distance 250 mm. Suitable with ST.1720, ST.1770, ST.1780, ST.1785 and 65.980 stands	AE.1856 Additional lens 0.5x for zooms ZE.1624/54/70/71. Working distance 150 mm. Suitable with ST.1740. Maximum object size is 15 mm	AE.1857 Additional lens 0.75x for zooms ZE.1624/54/70/71. Working distance 97 mm	AE.1858 Additional lens 1.5x for zooms ZE.1624/54/70/71. Working distance 50 mm
AE.1859 Additional lens 2x for zooms ZE.1624/54/70/71. Working distance 34 mm	AE.1876 Attachable plain stage 145 x 115 mm with 75 x 50 mm X-Y mechanical stage	AE.1881 Glass stage plate, 94 mm	AE.1882 Black/White stage plate, 94 mm
AE.5252 Glass fuses for ST.1730 and ST.1740 stand, 10 pieces	AE.5439 Pair of eyecups	SL.1869 Halogen spare bulb 6 V 10 W

Z series

These versatile high-end stereo microscopes are highly appreciated by the professionals of Life Science research and industry because of the excellent optical and mechanical characteristics of this series

Indispensable for a reliable quality inspection of processes in production or of industrial products, these microscopes are also extensively used in research laboratories. Certain components are also integrated in machines. Depending on the application, the microscopes can be configured with fix or variable magnification or zoom heads together with other components such as eyepieces, additional lenses, stands, stages, filters, etc

Highlights

• Modular system

• Binocular and trinocular models

• Standard HWF10x/23 mm eyepieces

• Stereo zoom heads with fix 45°, 60° or 90° inclined tubes

• Zoom magnification objectives

• Superior resolution optics

• Multiple stands

Specifications

EYEPIECES
Pair of SWF 10x/23 mm eyepieces

HEAD

• Binocular or trinocular heads with 45°, 60° or 90° inclined tubes
• Diopter ± 6° adjustment on both tubes for Z series.

• Interpupillary distance from 55 to 75 mm

ZOOM MAGNIFICATION OBJECTIVES

• Zoom objective with variable 0.4x to 2.5x magnifications

• Zoom objective with variable 0.7x to 4.5x magnifications

• Zoom objective with variable 1x to 7x magnifications

Zoom objectives with click stops are also available on request.
All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated

STANDS WITHOUT ILLUMINATION
ST.1710
Pillar stand with ST.1790 head holder
Pillar height 210 mm, diameter ø 20 mm
Dimensions 250 (h) x 150 (w)x 240 mm (d)

ST.1718
Pillar ergonomically flat stand with ST.1790 head holder
Pillar height 213 mm, diameter ø 20 mm
Dimensions 258 (h) x 330 (w) x 306 mm (d)

ST.1770
Large pillar wooden stand with ST.1790 head holder
Pillar height 360 mm, diameter ø 29mm
Dimensions 400 (h) x 580 (w) x 500 mm (d)
Suitable for SMD inspection

STANDS WITH ILLUMINATION
ST.1735 Rack & pinion stand with 3 W LED illumination and rotatable double-sided coated mirror (one frosted and one aluminium coated side). Especially developed for observation of transparent object. Very suitable equine or porcine embryo collection and transfer. Adjustable light intensity. Supplied with external power supply. Dimensions: 240 x 160 x 290 mm (D x W x H), min/max height 240-290 mm
ST.1740 Rack & pinion stand with 10 W halogen illumination. Supplied with frosted filter for transmitted illumination and a blue filter for incident illumination. Both illuminations are adjustable and can be simultaneously used. With integrated power supply. Dimensions: 240 x 160 x 290 mm (D x W x H), min/max height 240-290 mm

BOOM STANDS
ST.1720 Articulated one arm boom stand with a 270 x 270 mm base, 610 mm and ø 29mm pillar, with orientable stereo head holder ST.1794. Vertical post 780 mm. Weight 19.5 kg

65.980 / 65.983 Articulated one arm stand to be mounted on a table with 85 mm diameter head holder. Depth positioning of stereo head between 33 and 100 cm. Working distance between 0 and maximum 295 mm

HEAD HOLDERS
ST. 1790 Head holder with coarse adjustment*
ST. 1796 Head holder with coarse and fine adjustment*
ST. 1792 Head holder with coarse adjustment and opening for one fiber light guide*
ST. 1794 Orientable head holder with coarse adjustment and opening for one fiber light guide**
ST. 1798 Orientable head holder with coarse and fine adjustment and opening for one fiber light guide**

* Not suitable for  ST.1720 and 65.980/65.983
** Suitable for  ST.1720
All head holders have an internal diameter of 84 mm and a friction adjustment

STAGE
AE.1950 Large sliding X-Y stage, 350 x 270 mm, translation by hand

FOCUSING

• Coarse adjustment and friction adjustment for head holders for ST.1790, St.1792, ST.1794, ST1796.

• The head holders ST.1796 and ST.1798 are also equipped with a fine focusing adjustment

PACKAGE CONTENT

• Supplied with power cord, dust cover, a spare fuse and user manual.

• All packed in a polystyrene box
