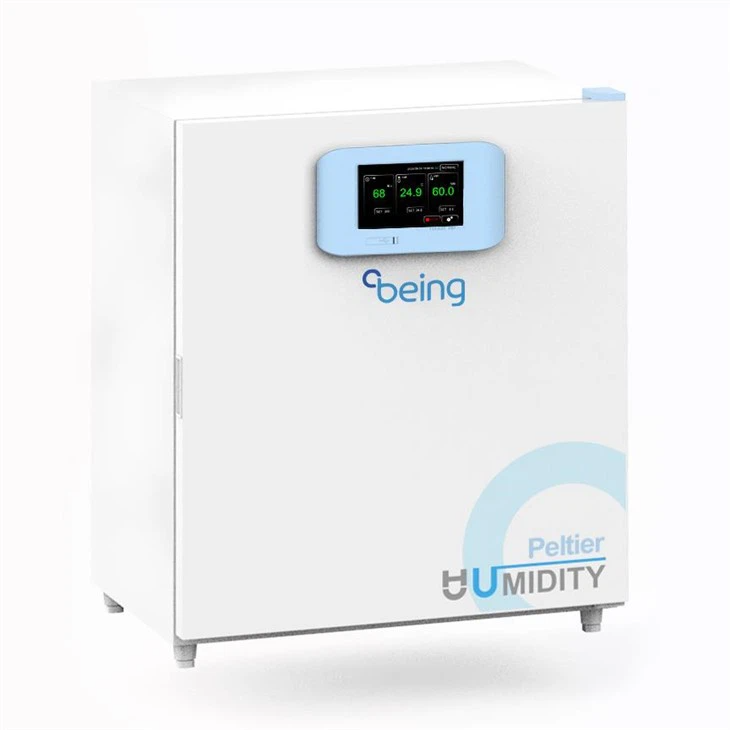

Climate Chamber Peltier Technology

คุณสมบัติสินค้า:

SKU : BEH Series

BEH Series

หมวดหมู่ : 12. Lab Equipment Temp & Humidity Chamber Being

แบรนด์ : Being

Share

ADVANTAGES OF PELTIER TECHNOLOGY

  • More compact since no additional installation space needed for refrigeration machine.
  • Much less energy consumption compares to compressor devices.
  • Low sound pollution and noise level.
  • With global warming consideration, lack of refrigerant is much more climate friendly.
  • Easier Service and maintenance

Performance and Features

  • 7-inch touchscreen controller provides fast, accurate, and uniform heat displacement.
  • P.I.D temperature controller provides accurate and reliable temperature control.
  • Three-level authorization: administrator, operator and visitor.
  • Performance curve, history of alarm and operation can be easily checked on screen.
  • USB data collection port.



Convenience

  • Variety of volumes to choose.
  • Inner chamber is made from corrosion-resistant mirror stainless steel.
  • Round curved inner angle is easy to clean.



Safety

  • Auto Start Feature after power loss/return.
  • Temperature deviation alarm.
  • Over temperature set point and shutdown with alarm.
  • Independent over temperature limit controller for added safety.
  • Over-current alarm and shutdown.



Technical parameters

ModelBEH-100BEH-250BEH-500
Capacity100L250L500L
Display7 inch touch screen
Temperature Range0~65
Temperature Accuracy±0.1
Uniformity±0.5 (@37)
Humidity Rang10%~90%RH
Humidity Resolution0.1%
Humidity Deviation±2%
Humidity Methodsteam humidification
Shelves2 pcs3 pcs3 pcs
Power ConsumptionHeating: 520W
Cooling: 420W
Heating: 690W
Cooling: 860W
Heating: 1200W
Cooling: 860W
Electrical RequirementAC220V/50Hz
Interior Dimension(W×D×H)mm480×400×560600×510×820700×660×1110
External Dimension(W×D×H)mm668×675×752790×745×1085870×940×1455

:Specification test under non-load condition: ambient temperature is 25, and relative humidity is 50% RH.
