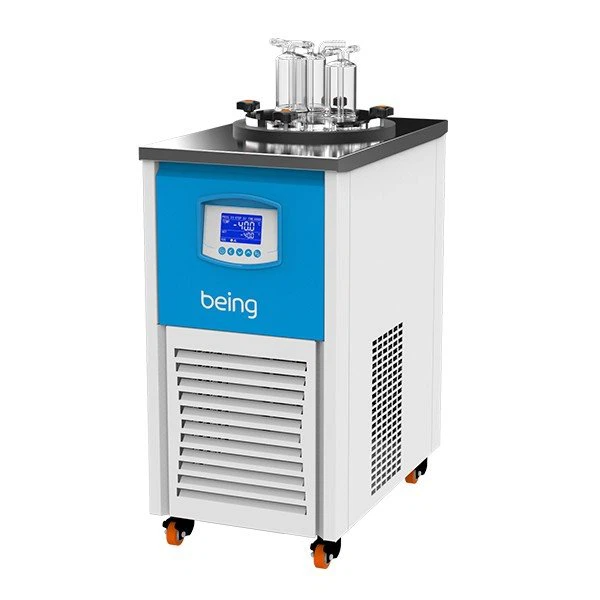

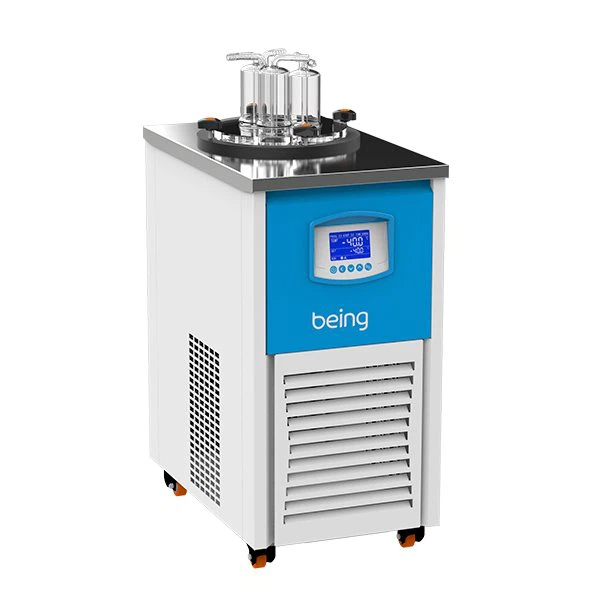

SKU : BCT-05 series
BCT-05 series
หมวดหมู่ : 12. Lab Equipment , Concentrators , Freeze Dryer & Cooling Trap , Being ,
แบรนด์ : Being
Share
Summary
In vacuum applications,a cold trap is a device that condenses all vapors(except the permanent gases) into a liquid or solid. The main purpose is to prevent vapors being produced by an experiment from entering the vacuum pump where they would condense and contaminate it. Clod traps can also cool surfaces or baffles to prevent oil vapors flowing from a pump into a chamber. In such a case,a baffle or section of pipe containing a number of cooled vanes, will be attached to the inlet of an existing pumping system.
Features
Improve pump working efficiency
The low temperature of the cold trap can condense the water vapor directly in the cold trap, thus greatly improving the working efficiency of the vacuum pump.
Protect vacuum pump
Pumps that use oil either as their working fluid (diffusion pumps), or as their lubricant (mechanical rotary pumps), are often the sources of contamination in vacuum systems. Placing a cold trap at the mouth of such a pump greatly lowers the risk that oil vapors will back stream into the cavity.
LCD PID controller
P.I.D temperature controller provides accurate and reliable temperature control.
Large LCD display screen and interface provides for user-friendly operation.
Energy conservation and environmental protection
non-freon refrigeration improve cooling efficiency, lower noise, longer life time ensures the stability for long time running.
Safety
Temperature deviation alarm.
Compressor over current , over heat, over load protection.
Design with
3 glass trap installation.
Upside opened Glass Trap.
Easy internal observation with PC Transparent Cover.
Drain valve for easy discharge of collected liquid.
S304 internal bath can be used to do water or ethanol cooling experiments. If equipped with glass condenser, it also can be used to deal with acid or organic solvents.
Option
RS 485 connector and USB connector can connect computer to save the data.
Specification
Model | BCT-05B | BCT-05D |
Collection methods | Immersion of Glass Condenser | |
Collection amount | Max.0.5Kg | Max.0.4Kg |
Lowest temp | -40 | -80 |
Safety function | Delayed Start of Compressor, Leakage, Overcurrent, Overvoltage Protection | |
Refrigerating capacity | Air Cooling 400W R404A | Air Cooling 400W R404A,R23 |
Cover interface material | Import PC | |
Tank interior dimension(mm) | φ220mm×180mm 6.8L | |
PC capping diameter | φ50.3mm 3 holes | |
Condenser diameter | φ10mm(Match the Diaphragm Pump) | |
Interior dimension W×D×H(mm) | 315×500×570 | 500×600×710 |
Power | 115V/60Hz/850W | 115V/60Hz/1300W |
All test data are tested in a 25°C environment
