SKU : ZY-A100
หมวดหมู่ : 12. Lab Equipment , Pathatology , Servicebio ,
แบรนด์ : Servicebio
Share

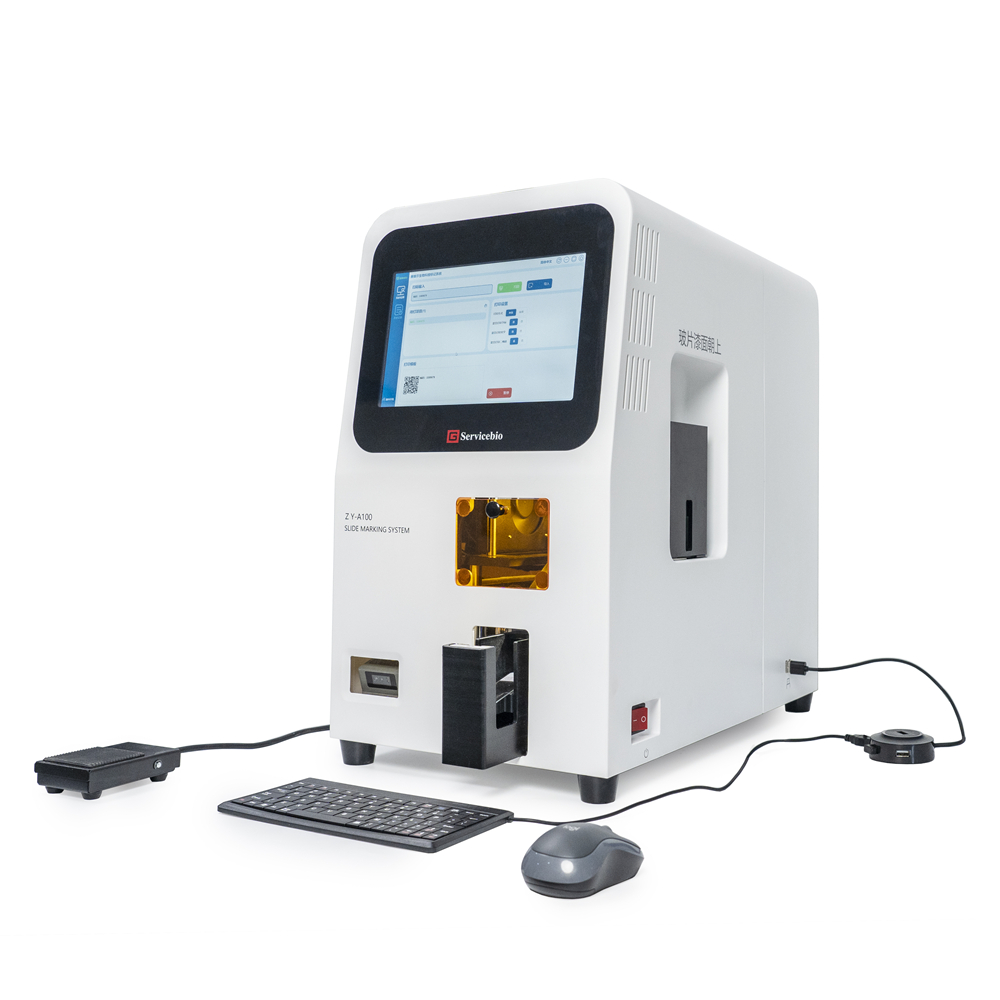

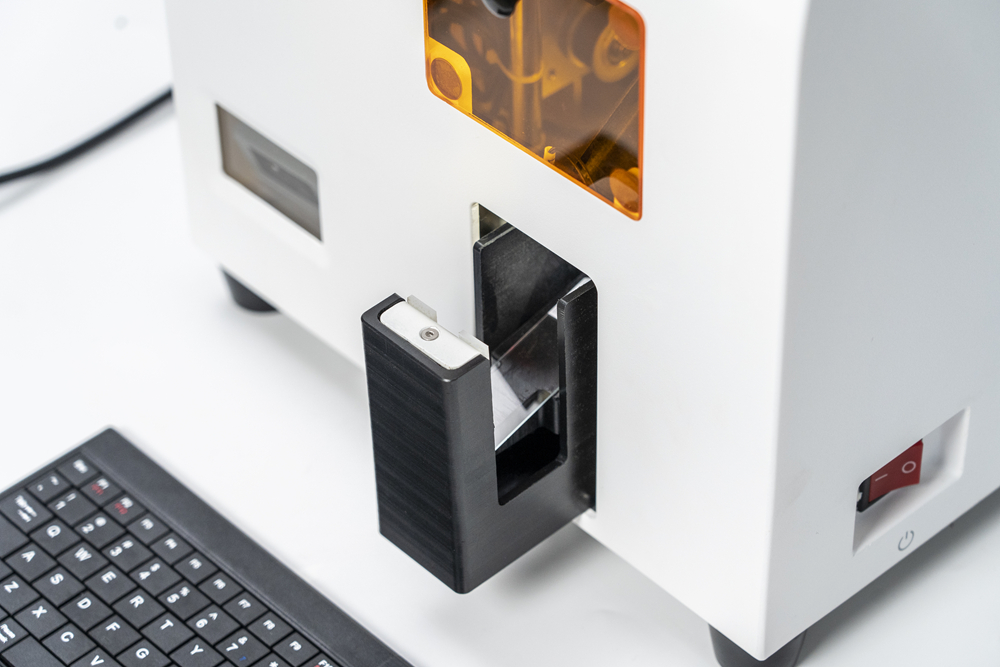

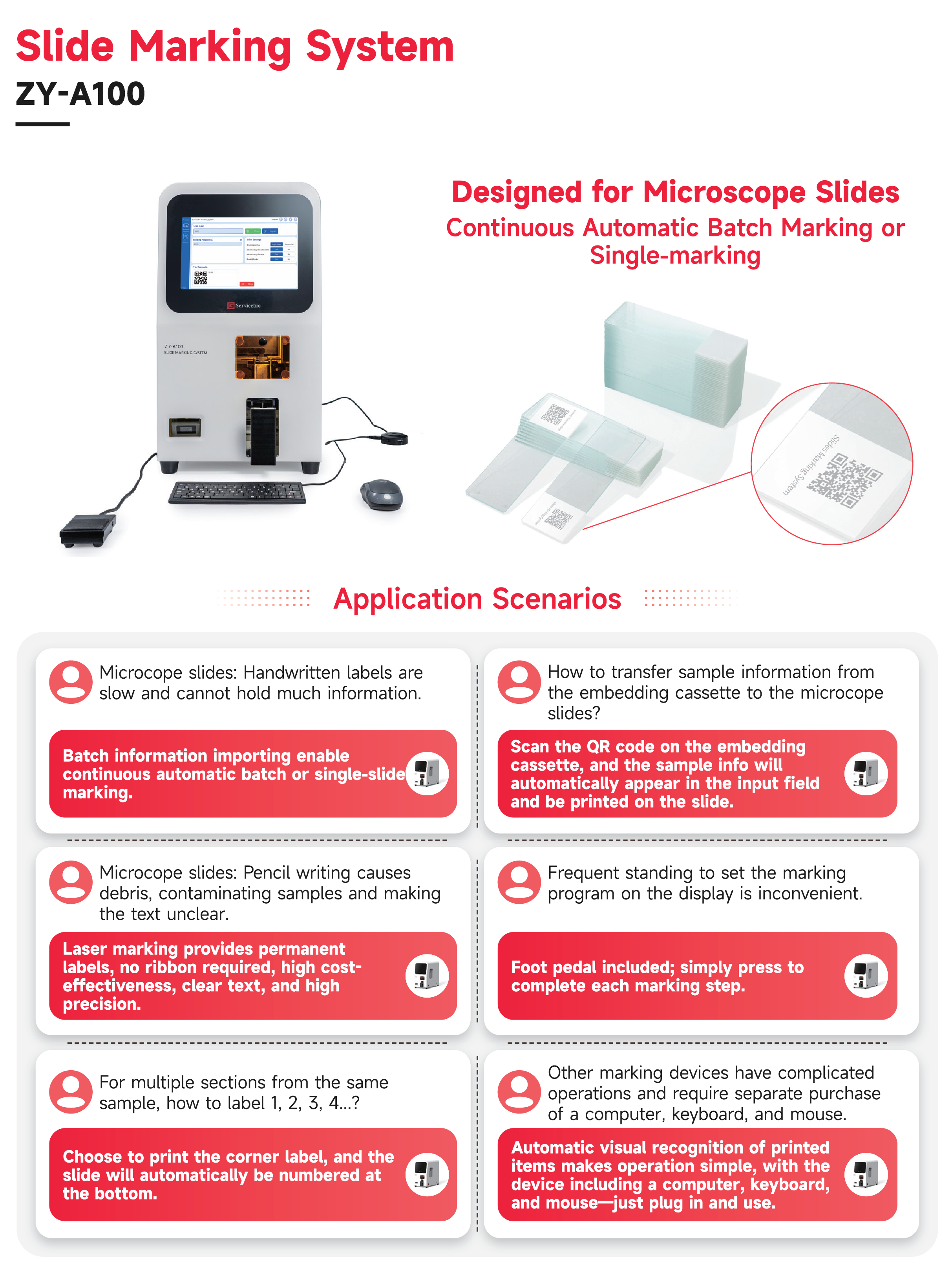

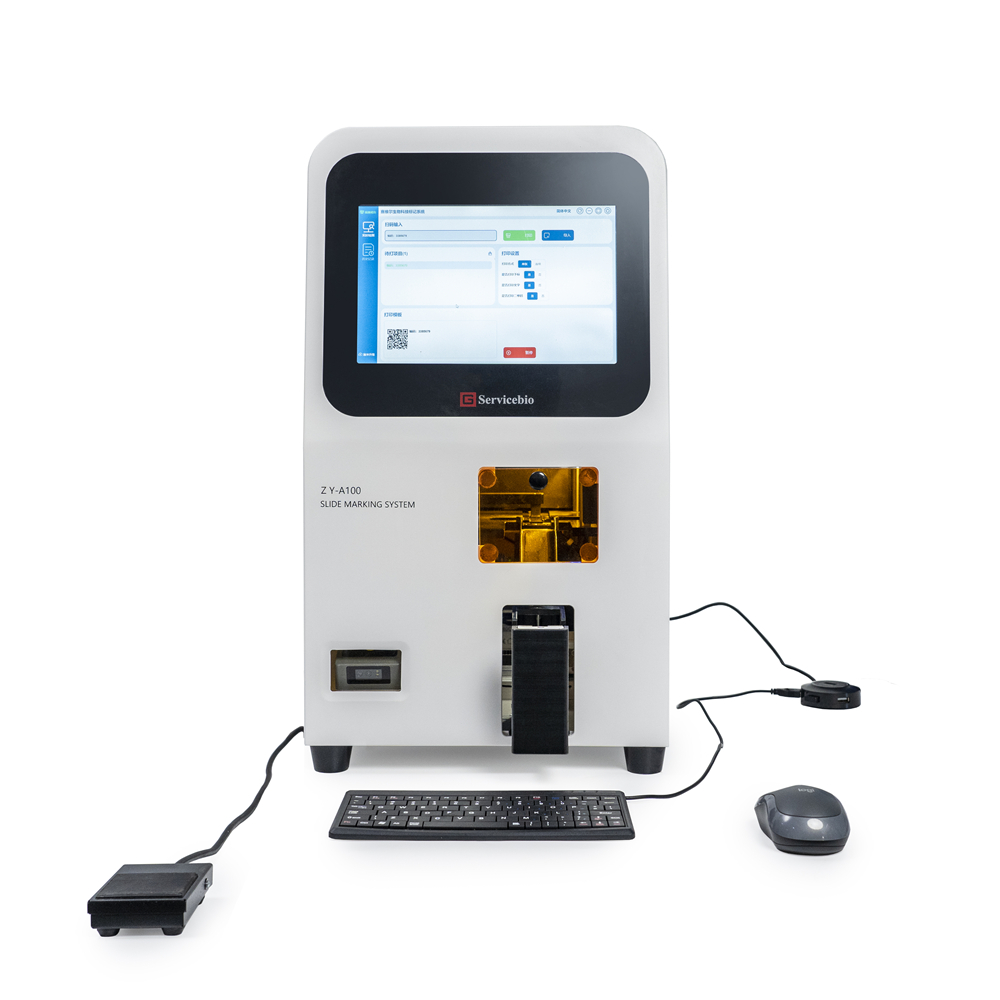

Specifically designed for microscope slides, it enables batch loading and supports continuous automatic batch marking or single-slide marking.
Product Introduction
Compared with silk-screen printing, laser marking can greatly improve marking efficiency. it allows for manual character input, bulk import of EXCEL files, or scanning with a barcode scanner to enter information, thus avoiding human input errors and achieving efficient marking. with Al visual positioning, it requires less manual intervention and improves marking quality.
This instrument offers three input modes:
This instrument is equipped with a user-friendly touchscreen interface for human-machine interaction, supports UsB external
information import, and records the process of each operation in a log file. The instrument also supports system self-check.
Product Parameter
| Product Model | ZY-A100 |
| Module Specifications | Slides |
| Laser Wavelength | 355nm Ultraviolet Laser |
Laser Powerand | 3Wair-cooled ultraviolet solid-state laser,air-cooled |
| Laser Average Power | >3W@40kHz |
| Dimensions | 540×315×545mm |
| Weight | 25kg |
Other Parameters
| Operating Function | Print the imported information onto the product through |
| Marking Working Temperature | Temperature:15-35°c,humidity<90% |
| Display Screen | 10,1"1280 x800@60 Hz,LED backlight, capacitive touchscreen |
User-friendly display of | Yes, with a dynamic temperature color background, animated operating status |
| Interface | Minimalist interface |
| Ethernet port | Built-in Gigabit Ethernet port |
| Intelligent self-check on startup | Yes,the system interface can also start self-check |
| Marking information recording | Yes |
| Fault self-diagnosis and reporting | Yes |
Instrument maintenance index function | Yes, evaluates product maintenance based on instrument usage conditions |
| System time | Yes, can set instrument date and time |
| Screen brightness adjustment | Yes, adjustable in multiple levels |
| Language selection | Yes,switch system language (Chinese/English) |
| System interface | Includes system settings, self-check, restore factory |
| Help system | Product features, software characteristics, quick guide, fault codes, contact information |
| WeChat service platform | Yes, when a fault occurs , users can send fault photos to |
| Factory mode | Yes, it is only accessible to manufacturers with special |
