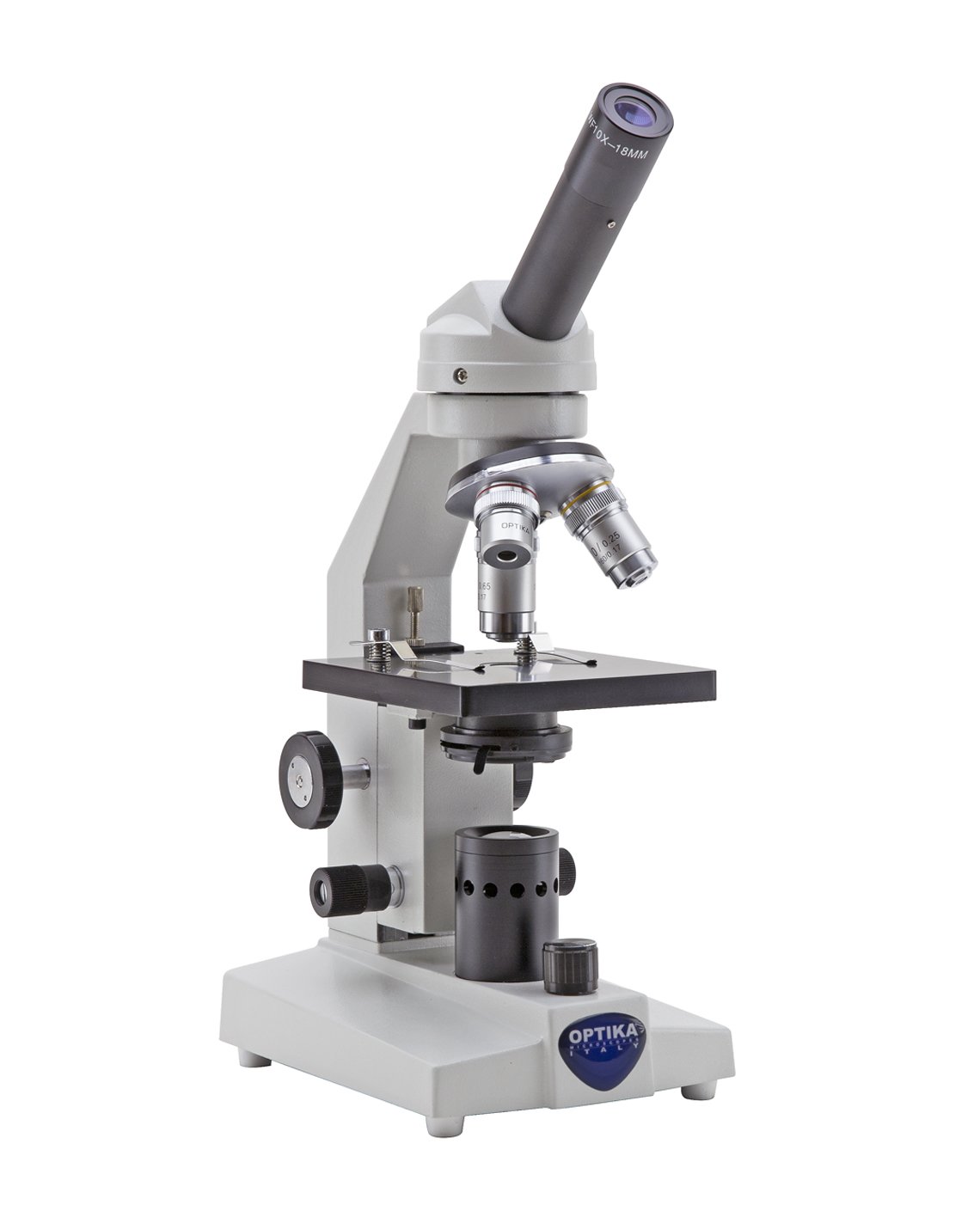

SKU : M-100FLed
ECOVISION Series
หมวดหมู่ : 12. Lab Equipment , Microscope , EDUCATIONAL Microscopes , Biological Microscopes , OPTIKA , Microscopes ,
แบรนด์ : OPTIKA
Share
Head: Monocular, 45° inclined; 360° rotating.
Eyepiece: WF10x/18 mm, secured by screw.
Nosepiece: Triple ball bearings revolving nosepiece.
Objectives:
Achromatic 4x/0.10 W.D: 37,5 mm
Achromatic 10x/0.25 W.D. 6,7 mm
Achromatic 40x/0.65. W.D. 0,65 mm
All with anti-fungus treatment.
Specimen stage: Fixed stage, 120×110 mm, with sample clips.
Focusing: Separate coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: N.A. 0.65 with iris diaphragm.
Illumination: 0.5 W LED, with brightness control, rechargeable batteries (not included).
Color temperature: 6,300 K. 100-240Vac/4.6Vdc external power supply.
Models available:
M-100FLed-EU Monocular brightfield microscope, EU
M-100FLed-UK Monocular brightfield microscope, UK adapter
Related Documents:
OPTIKA - M-100FLed - Technical Datasheet EN - 234.78 KB
