GenepHlow™ DNA Cleanup Maxi Kit

DNA Extraction/Gel ExtractionGenepHlow™ DNA Cleanup Maxi Kits were designed to recover or concentrate DNA fragments from large volume agarose gel, restriction enzyme digestion or PCR reaction products. Gel/PCR Buffer (yellow color indicating optimal pH≤7.5) is premixed with a pH indicator to ensure optimal pH, facilitate DNA binding and allow for easy observation of undissolved agarose gel. If pH exceeds the optimal level (>7.5), the color of the solution will appear purple instead of yellow. 3M Sodium Acetate (pH5.0) which is included with the kit, can then be added to the solution to adjust pH and return the color to yellow. Chaotropic salt is used to dissolve agarose gel and denature enzymes while DNA fragments are bound by the glass fiber matrix of the spin column. Contaminants are removed with a Wash Buffer (containing ethanol) and the purified DNA fragments are eluted by a low salt Elution Buffer, TE or water. The pH indicator, salts, enzymes and unincorporated nucleotides can be effectively removed from the reaction mixture without phenol extraction or alcohol precipitation and the purified DNA is ready for use in subsequent reactions.

DESCRIPTION
Specifications (Cat. # DFM010, DFM025)

• High Efficiency: up to 80% recovery

• Convenient: Gel/PCR binding buffer is premixed with a pH indicator to allow for easy determination of optimal pH

• Includes 3M Sodium Acetate (pH5.0) to adjust pH if it becomes too high

• Sample Size: up to 5 g of agarose gel slice or up to 2 ml of restriction enzyme digestion product or PCR product

• Broad Fragment Size Range: 100 bp–10 kb

• Operation Time: 24 minutes for enzymatic reaction cleanup and 36 minutes for gel extraction

• Spin Columns: glass fiber membrane

• Elution Volume: 500-1,000 µl (50 µl dead volume)

• Binding Capacity: 200 µg

• Storage: dry at room temperature (15-25ºC) for up to 18 months without showing any reduction in performance

APPLICATIONS
Fluorescent and Radioactive Sequencing, PCR, Restriction Enzyme Digestion, DNA Labeling and Ligation, Microarray, Transfection

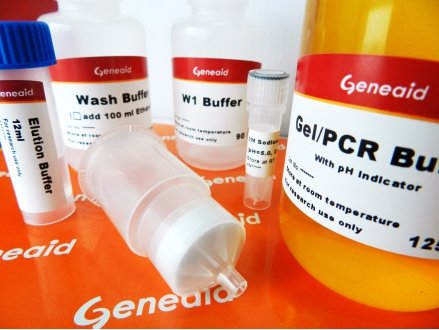

COMPONENTS

• Gel/PCR Buffer (premixed with a pH indicator)

• 3M Sodium Acetate (pH5.0)

• W1 Buffer

• Wash Bufffer

• Elution Buffer (10 mM Tris-HCl, pH8.5 at 25ºC)

• DM Columns

QUALITY CONTROL
The quality of the GenepHlow™ DNA Cleanup Maxi Kit is tested on a lot-to-lot basis according to Geneaid's ISO-certified quality management system. DNA fragments are purified from either agarose gel, restriction enzyme digestion products, PCR products or other aqueous solutions analyzed by electrophoresis.

DOCUMENTS

GenepHlow™ DNA Cleanup Maxi Kit

GenepHlow™ DNA Cleanup Maxi Kit Quick Protocol
