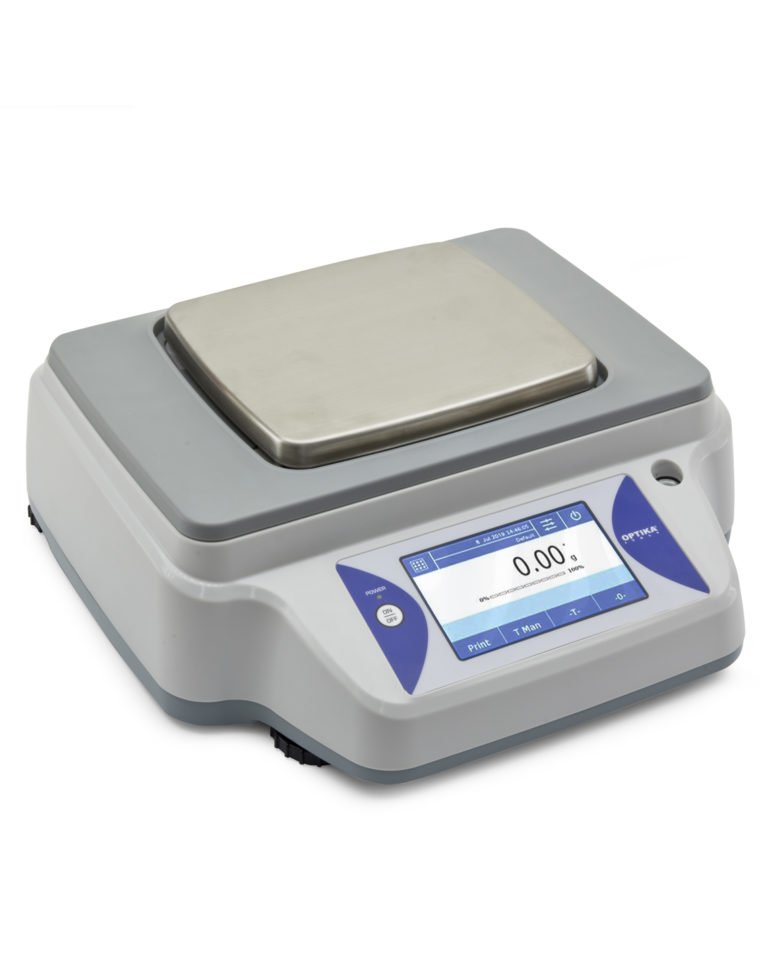

TS-HC Series – 0,01g – 0,1g – 0,5g – 1g
The new TS-HC high capacity balances bring robustness, reliability and a high level of performance.
The TS-HC models are equipped with a large 5’’ color touchscreen display that gives an user-friendly access to all the balance’s advanced applications and internal databases.
The user has easy and intuitive access to all the functions thanks to the icon-driven menus.
This means more efficiency, productivity and interactivity.
The many embedded functions make these balances an ideal instrument of work for many applications inside and outside laboratory
and factory.
Related Documents:
Images are for illustrative purposes only
| - Electromagnetic force restoration weighing system (for 0,01g resolution)
- High readability load cell weighing system (for 0,1g resolution)
- External calibration
- Large 5’’ color touchscreen 800×480 display
- Selectable and customizables measuring units
- Internal Database
- GLP/ISO record of last stored calibration data
- Multi Languages (EN-DE-FR-IT-SP-PT)
- Multi-user with password protection
- USB port for import/export database data
- RS232 serial interface
- Advanced piececounting function with Statistcs report
- Textile function to measure fibers with Statistics report
- Formulation (Recipe)
- Checkweighing
- Percentual weighing
- Weights adding
- Animal weighing
- Max load determination (Peak hold)
- Plastic protection cover
- Under hook weighing
|
Balance technical data - Span drift (+ 10…+ 30 °C): +/- 6ppm/°C
- Dimensions LxWxH (mm): 360x355x130
- Power supply 110-230Vac, 50/60Hz;
output 9V 1,2A 10VA
- Power supply 110-230Vac, 50/60Hz;
output 24V 1A 13VA (0,01g res)
- Net Weight: 8Kg (0,01 res), 7,5 kg
|
 |
Accessorie
- Serial Printer TLP-50, with date/time (CNS054)
- Serial Printer DPP-250 (CNS007)
- PC data collection software (CNS0476)
- Serial to USB converter (CNS1002)
- Factory Calibration certificate (CNS0333)
- Portable rechargeable battery pack (CNS015)
- Ioniser Ion-A15 (CNS0371)
|
