Speed Variable Series with Stainless Steel Housing
Attribute:
SKU : Speed Variable Series with Stainless Steel Housing
Peristaltic Pump ︱Speed Variable Series with Stainless Steel Housing
Categories : MICROLIT , Peristaltic Pump , 12. Lab Equipment ,
Brand : MICROLIT
Share
Speed Variable Series with Stainless Steel Housing

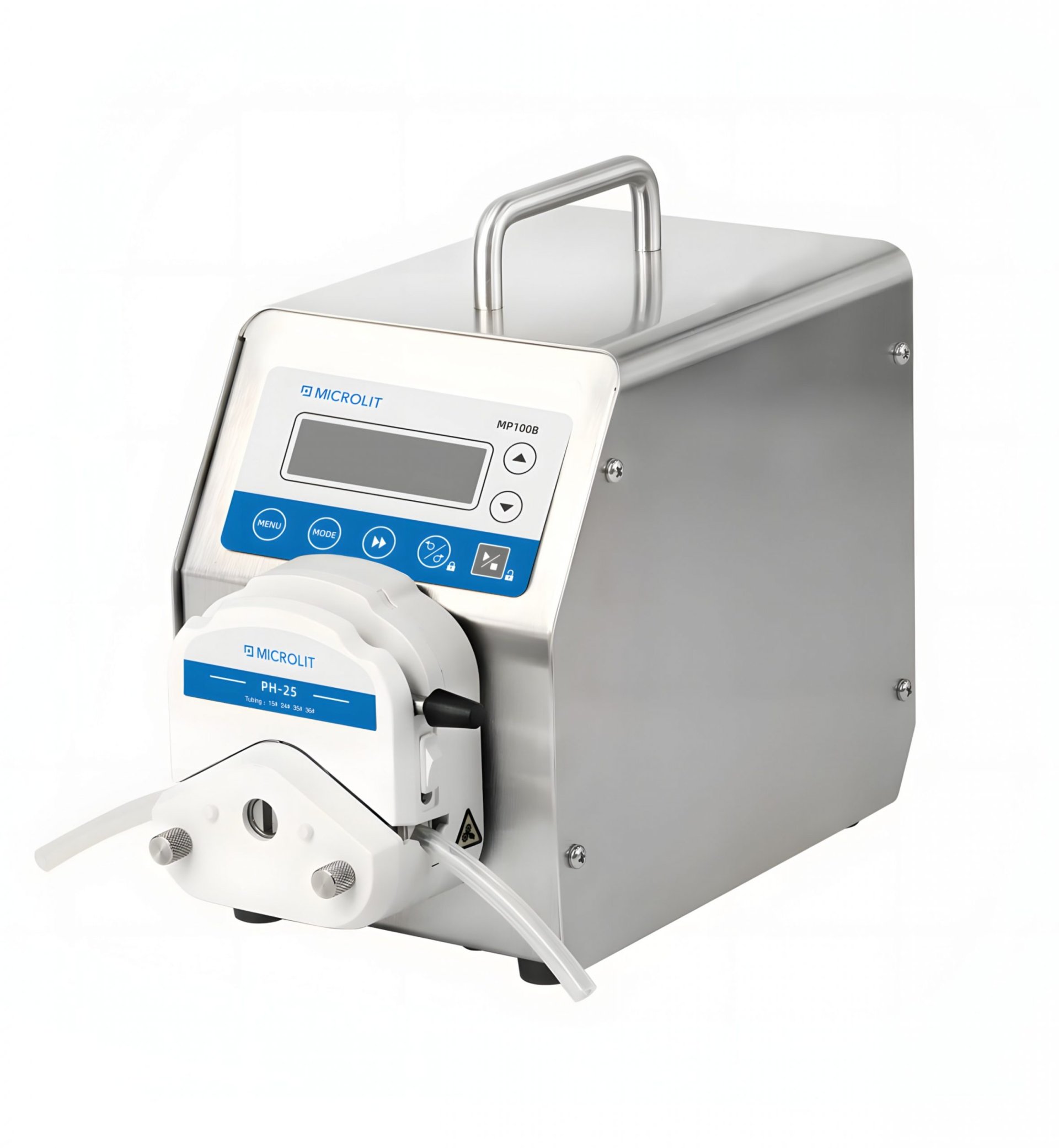

Microlit Speed Variable Peristaltic Pumps (MP100B, MP300B, MP600B) with 304 Stainless Steel Housing
- LCD Display for parameter setting and status indication.
- Programmable delay start/stop functionality.
- Supports bidirectional control, variable speed, and non-volatile memory.
- External analog input and opto-isolated control signals.
- RS485 communication with MODBUS protocol support.
Microlit Speed Variable Peristaltic Pumps offers key functions like start/stop control, speed adjustment, and forward/reverse rotation. They include an LCD display, multi-segment dispensing, and an anti-drip feature, plus RS485 communication using the MODBUS protocol for seamless integration with other devices or equipment.
For Model: MP100B
Flow Rate: 0.00011-750 ml/min, Speed Rate: 0.1~150 RPM
Driver Weight: 3.5kg, Power Consumption : <40W
For Model: MP300B
Flow Rate: 0.005-1750 ml/min, Speed Rate: 0.1~350 RPM
Driver Weight: 4.3kg, Power Consumption: <50W
For Model: MP600B
Flow Rate: 0.005-3000 ml/min, Speed Rate: 0.1-600 RPM
Driver Weight: 4.3kg, Power Consumption: <60W
Specification
| Features | Description |
| Speed Resolution | 0.1RPM (speed ≤ 100 RPM ) /1RPM (speed>100RPM) |
| Duration | Running time 0.1~999 S/Min/H/D, Interval time 0.1~999 S/Min/H/D |
| Dispensing Interval Time | 0.1~999 S/Min/H/D |
| Dispensing Time | 1~999, “0” Infinite cycle |
| External Control Signal Input | (1) Start/Stop: passive contact, external control input level (5~24V) (2) Forward/Reverse: passive contact, external control input level (5~24V) (3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set |
| External Control Signal Output | (1) Start/Stop: Level Signal (following input voltage) (2) Forward/Reverse: Level Signal (following input voltage) |
| Working Environment | Temperature 0 ~ 40°C, relative humidity<80% |
| IP Grade | IP31 |
| Dimension (L×W×H) | 261mm x 150mm x 237mm |
