CMEX EXPLORER USB-2 CMOS Mini Eyepiece cameras without projection lens
CMEX-2f, 2.0 MP digital USB-2 color camera with 1/2.9 inch CMOS sensor
Model : DC.2000f
CMEX
The different USB-2 cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes
CMEX-f USB-2 cameras with fast CMOS sensor
The CMEX-2f, CMEX-5f and CMEX-12f are equipped with an extra fast CMOS sensor with 8 bits grayscale conversion and a 24 bits color rendering. The CMEX-f cameras are equipped with USB-2 data interface and supplied with ImageFocus Plus software
Besides capturing of images and videos, the ImageFocus Plus software allows measurements on still and live images and annotations on captured images, stitching and stacking of images and more. Compatible with Windows 10 and higher both 32 and 64 bits configurations. A Mac version is available
Specifications
Highlights
TECHNICAL SPECIFICATIONS CMEX-2f (DC.2000f)
Sensor
CMOS 1/2.9 inch
Pixels
1920 x 1060 pixels, 2.0 Mpix
Scan mode
Progressive, rolling shutter
Pixel size
2.8 μm x 2.8 μm
Filter
RGB
Mount
C-mount
Max fps
Up to 30 frames per second (1920x 1080 pixels)
(Frame rates have been determined at optimal conditions)
ADC
12 bits
Color depth
24 bits
Sensitivity
0.51 V/lux-sec @ 550 nm
Exposure
Automatic or manual, from 1 ms to 2 s
White balance
Automatic/manual
Dynamic range
72 db
Data interface
USB 2.0 at 480 Mb/s
Operation
0 – 60° C, 10-85 % humidity
Supplied with

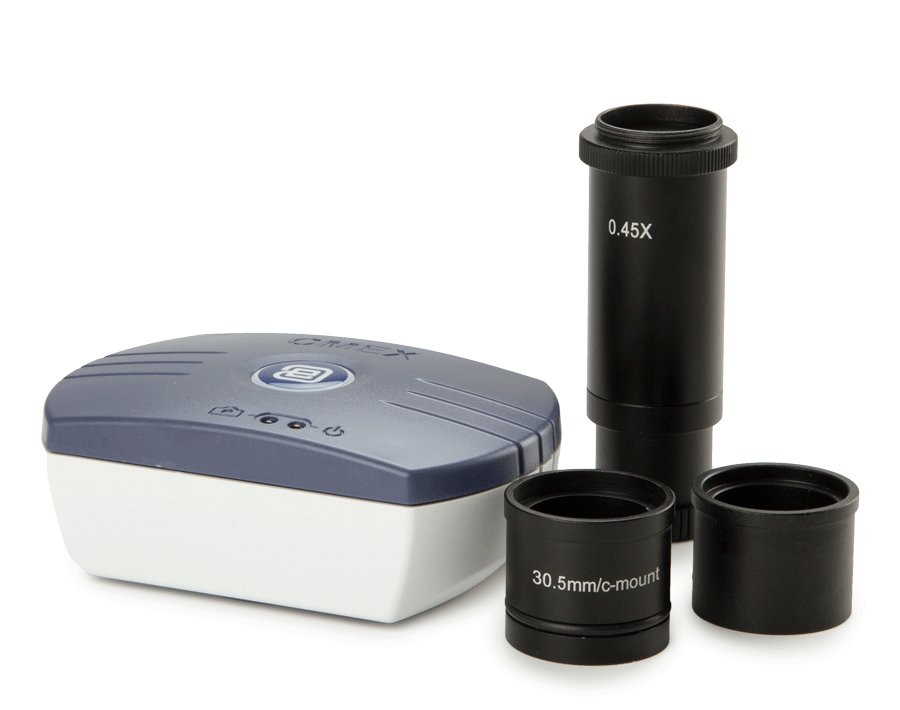

0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box
Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS
Product number
DC.2000f
---
TECHNICAL SPECIFICATIONS CMEX-5f (DC.5000f)
Sensor
CMOS 1/2.8 inch
Pixels
1920 x 2560 pixels, 5.0 Mpix
Scan mode
Progressive, rolling shutter
Pixel size
2.0 μm x 2.0 μm
Filter
RGB
Mount
C-mount
Max fps
Up to 30 frames per second (2560 x 1920 pixels)
Up to 50 frames per second (1600 x 1200 pixels)
(Frame rates have been determined at optimal conditions)
Grayscale conversion
8 bits
Color depth
24 bits
Sensitivity
2.0 V/lux-sec @ 550 nm
Exposure
Automatic or manual, from 1 ms to 2 s
White balance
Automatic/manual
Dynamic range
72 db
Data interface
USB 2.0 at 480 Mb/s
Operation
0 – 60° C, 10-85 % humidity
Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box
Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS
Product number
DC.5000f
---
TECHNICAL SPECIFICATIONS CMEX-12 (DC.12000f)
Sensor
CMOS 1/2.3 inch
Pixels
3000 x 4000 pixels, 12.0 Mpix
Scan mode
Progressive, rolling shutter
Pixel size
1.33 μm x 1.33 μm
Filter
RGB
Mount
C-mount
Max fps
Up to 15 frames per second (4000 x 3000 pixels)
Up to 30 frames per second (2590 x 1944 pixels)
(Frame rates have been determined at optimal conditions)
Grayscale conversion
8 bits
Color depth
24 bits
Sensitivity
1.5 V/lux-sec @ 550 nm
Exposure
Automatic or manual, from 1 ms to 2 s
White balance
Automatic/manual
Dynamic range
59.5 db
Data interface
USB 2.0 at 480 Mb/s
Operation
0 – 60° C, 10-85 % humidity
Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box
Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS
Product number
DC.12000f
Accessories for cameras
 | DC.1324 C-mount adapter with 0.45x objective for standard Ø 23.2 mm tubes and 1/2 inch camera |
 | DC.1353 C-mount adapter with 0.37x lens, fixed focal length and short barrel, for standard 23.2 mm tubes and 1/3 inch camera |
 | DC.1355 C-mount adapter with 0.50x lens, fixed focal length and short barrel, for standard 23.2 mm tubes and 1/2 inch camera |
 | DC.1357 C-mount adapter with 0.75x lens, fixed focal length and short barrel, for standard 23.2 mm tubes and 2/3 inch camera |
 | DC.1359 C-mount adapter with 1x lens, fixed focal length and short barrel, for standard 23.2 mm tubes and 1 inch camera |
 | DC.1330 30 mm to 23.2 mm conversion adapters for stereo microscopes |
 | DC.1335 30.5 mm to 23.2 mm conversion adapters for stereo microscopes |
 | DC.1340 23.2 mm tube fixation device for CMEX cameras |
 | AE.5130 Universal SLR adapter with built-in 2x lens for standard 23.2 mm tube. Needs T2 adapter |
 | LE.1980 Industrial LED ring light with 48 leds, diam. 45mm/90mm with connection for analog controller LE.1992 |
 | AE.1110 Stage micrometer 1 mm divided in 100 parts, 10 μm per division |
 | AE.1111 Stage micrometer 2 mm divided in 200 parts, 10 μm per division |
 | AE.1112 Micrometer 76 x 26 mm slide, 50 mm/500 divisions, 100 μm per division |
